series

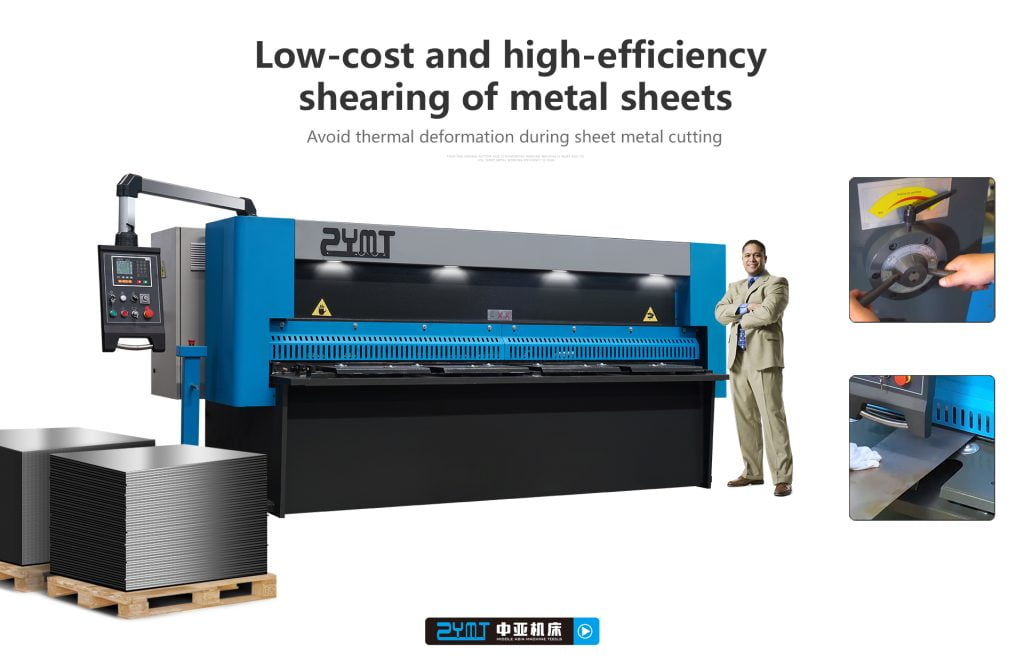

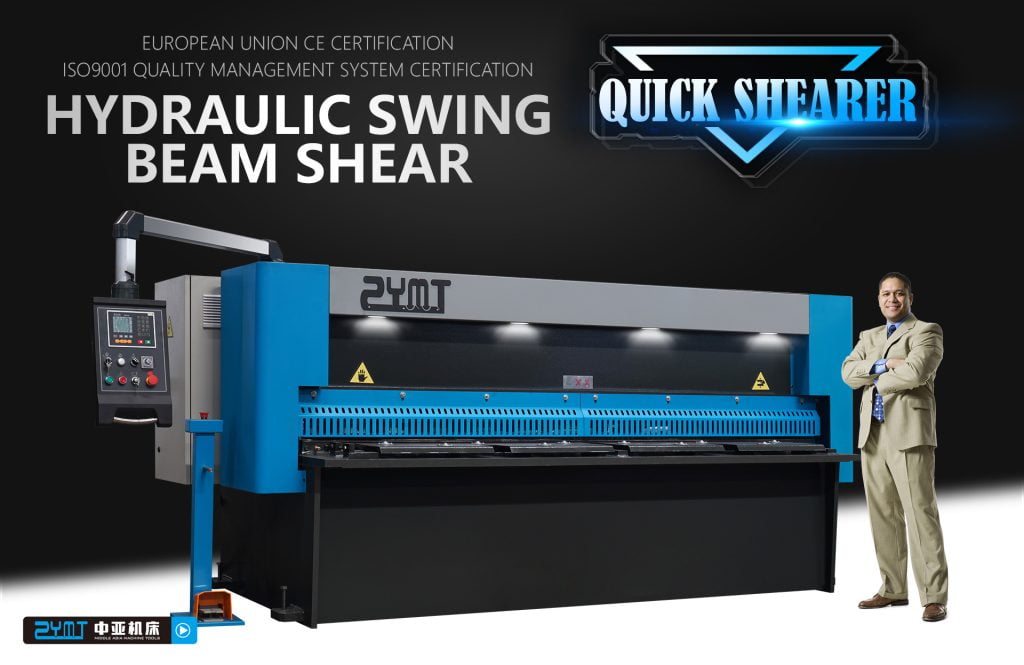

Hydraulic shears

Exterior

  • Support user-customized colors and styles

Main Feature

  • Unipivot support, lever principle
  • Do arc-shaped curvilinear motion around the rear fulcrum
  • Hydraulic oil cylinder fixed in an oblique direction
  • 75% acting force, 25% loss
  • Fixed cutting angle and blade carrier angle
  • The economical solution to cut sheet metal

Features

Durable

Efficient

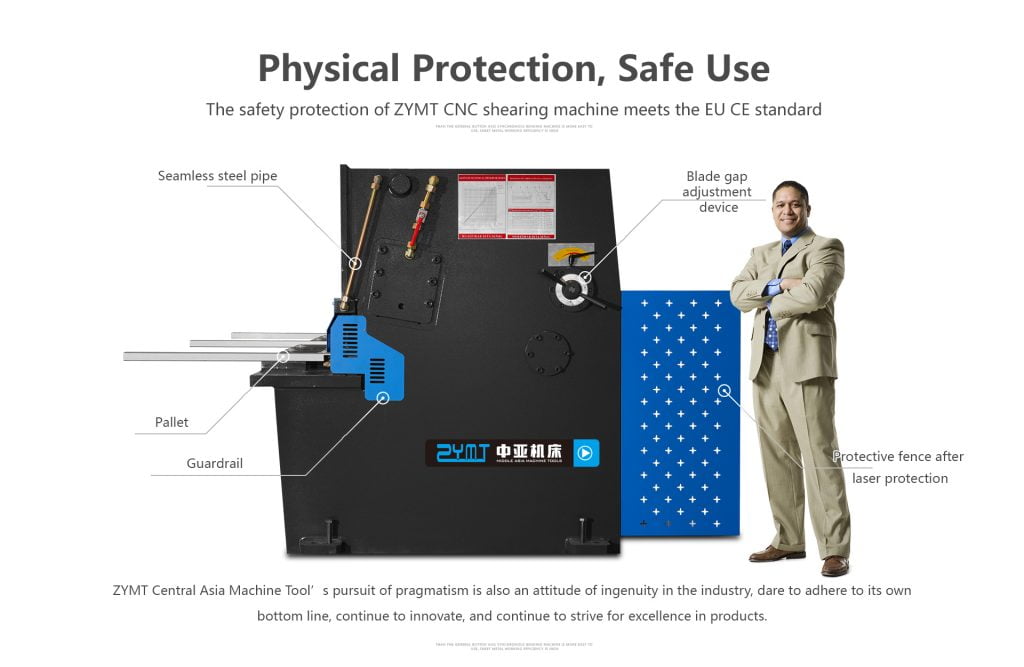

Safety

Accessories

ZYMT has reached cooperation with customers in a flexible way of sales, and customers can purchase relevant accessories at will according to their needs.

Numerical control system, back gauge, front support, safety protection equipment, main motor, hydraulic system, air cooling.

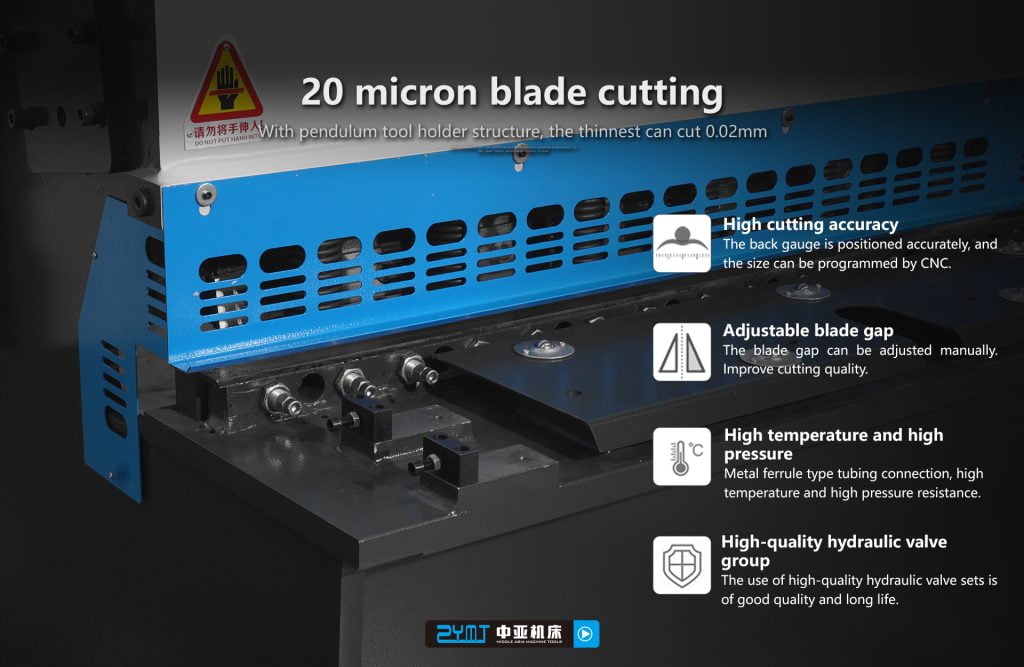

Tool Holder

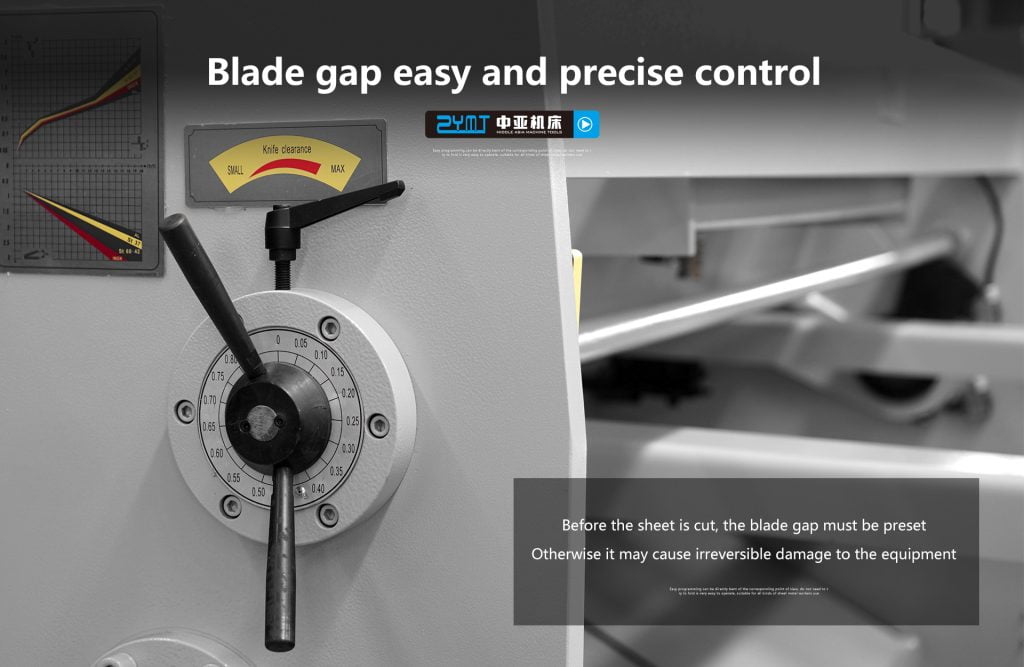

Blade Gap Adjustment

  • manual adjustment.
  • There are scale indications.
  • There is a specification table for use.
  • There is a lock button.

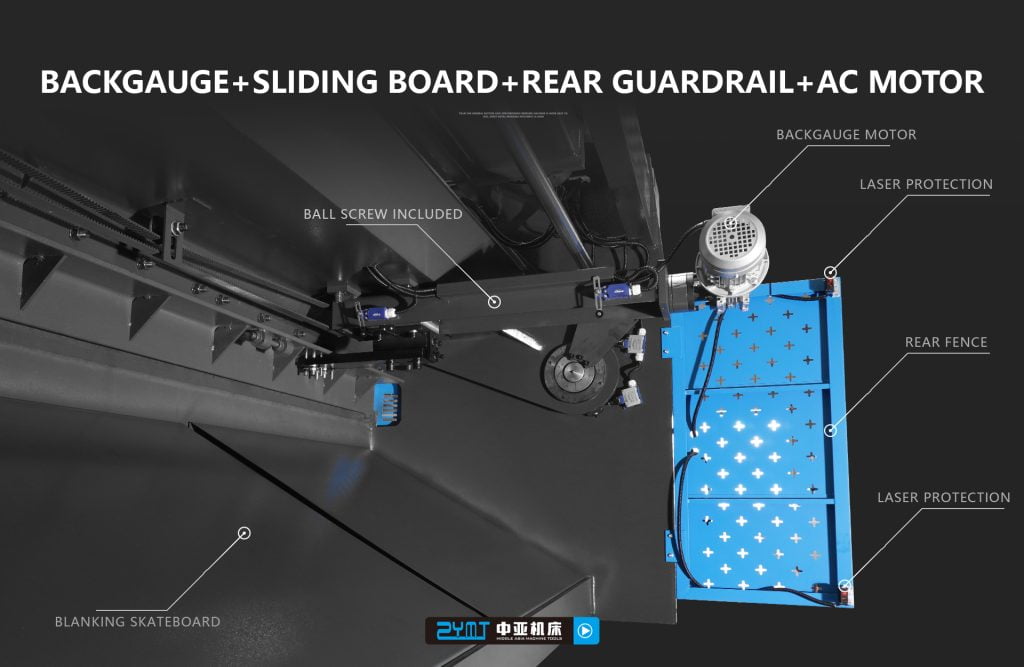

Backgauge Assembly

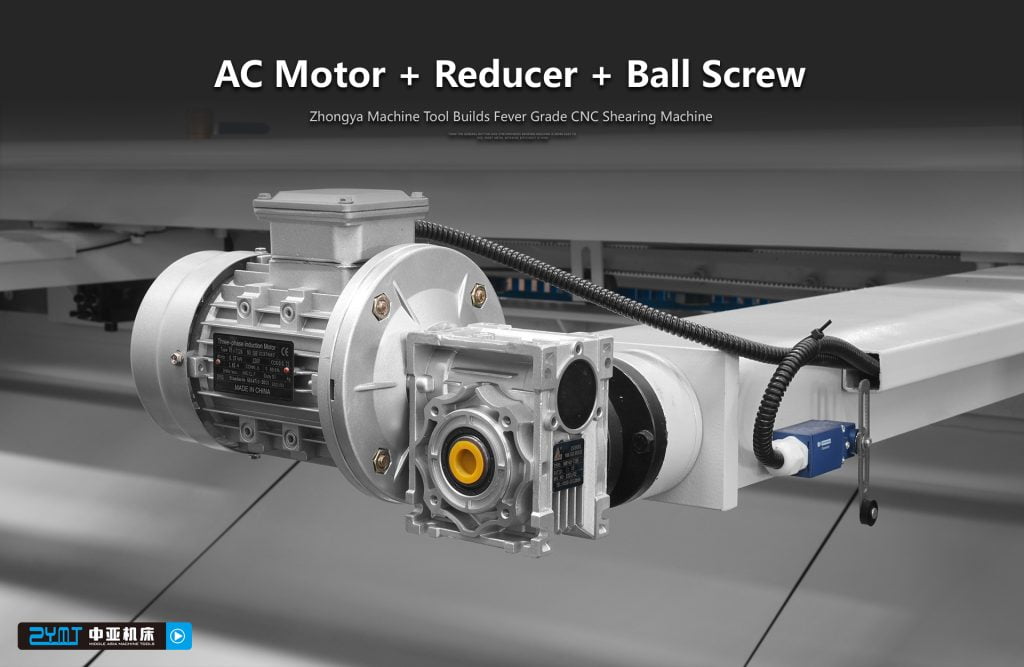

AC Motor

  • Brand pure copper motor
  • Cooperate with reducer control
  • Optimized algorithm positioning is fast and accurate
    long life

Servo Motor

  • Brand Servo Motor
  • Cooperate with reducer control
  • With brake
  • CNC positioning
  • Fast and accurate

Feeding Port

  • safety fence
  • Cylinder pressure

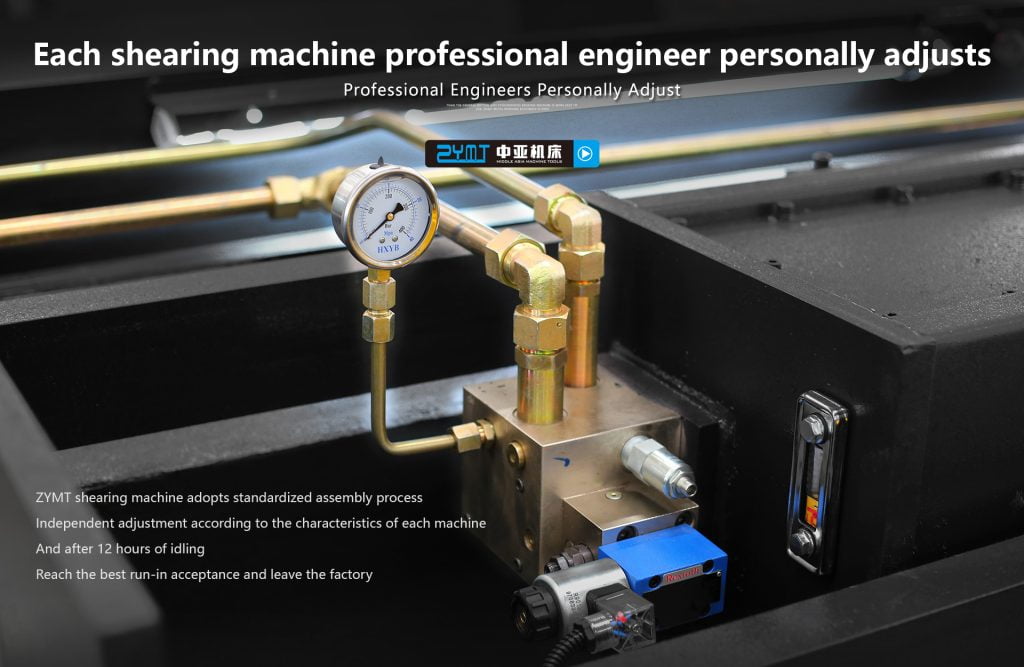

Hydraulic system

  • Rexroth hydraulic valve group
  • Pressure gauge shows working pressure
  • Card sleeve type oil pipeline connection
  • Fuel tank fuel level display

CNC Systems

We plan to produce more touch screen controlled bending machines in the future.

Customers can freely choose the CNC system.

Delem DAC-360T

ESTUN E200ps

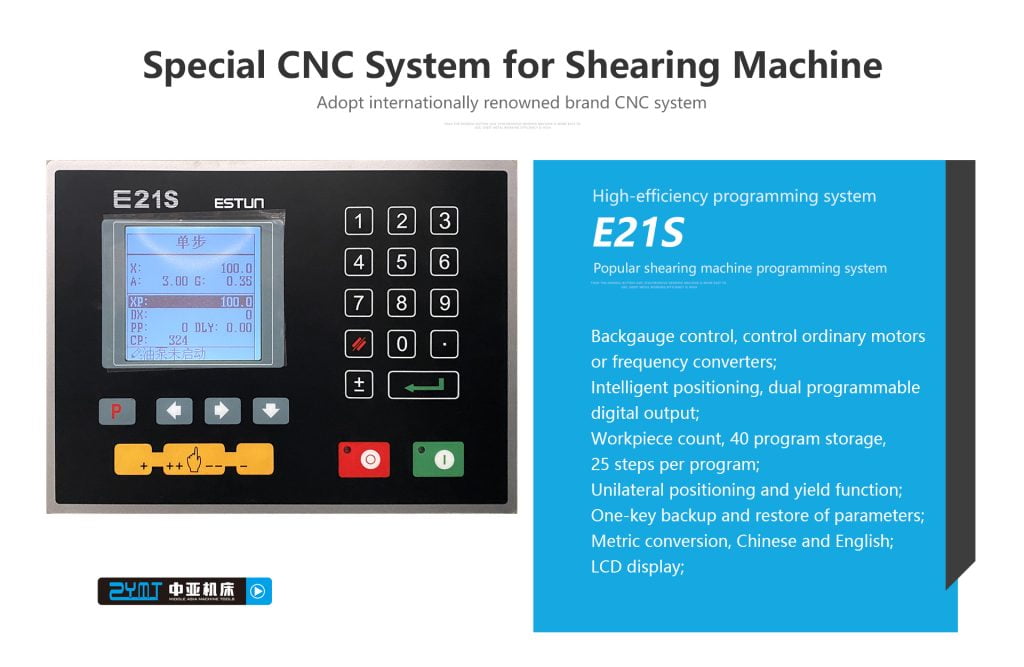

ESTUN E21

Customer case

  • We have a sales history in more than 100+ countries, and have held more than 130+ exhibitions in total, with 100k+ visitors.

Production line

  • Press Brake High-speed production line workshop
  •  Export Press Brake production workshop

Specs

ModelMaximum shear thicknessMaterial yield strengthMaximum shear thicknessCutting angleBackgauge strokeCutting speedMain motor powerL*W*H(mm)Weight
4*25004mm≤450kN/cm2500mm1°30'20~600mm16Times/min5.5kW3040*1610*16203800Kg
4*32004mm≤450kN/cm3200mm1°30'20~600mm14Times/min5.5kW3840*1610*16205000Kg
4*40004mm≤450kN/cm4000mm1°30'20~600mm10Times/min5.5kW4600*1700*17006500Kg
4*60004mm≤450kN/cm6000mm1°30'20~600mm8Times/min7.5kW6460*2100*320011000Kg
6*25006mm≤450kN/cm2500mm1°30'20~600mm14Times/min7.5kW3040*1610*16205000Kg
6*32006mm≤450kN/cm3200mm1°30'20~600mm12Times/min7.5KW3840*1610*16206000Kg
6*40006mm≤450kN/cm4000mm1°30'20~600mm8Times/min7.5KW4620*1750*17008200Kg
6*50006mm≤450kN/cm5000mm1°30'20~600mm6Times/min11KW5400*1800*190010500Kg
6*60006mm≤450kN/cm6000mm1°30'20~600mm5Times/min11KW6480*2100*230016500Kg
8*25008mm≤450kN/cm2500mm1°30'20~600mm10Times/min11KW3040*1700*17006000Kg
8*32008mm≤450kN/cm3200mm1°30'20~600mm8Times/min11KW3860*1700*17007200Kg
8*40008mm≤450kN/cm4000mm1°30'20~600mm8Times/min11KW4640*1700*17008800Kg
8*50008mm≤450kN/cm5000mm1°30'20~600mm8Times/min11KW5400*2100*200011500Kg
8*60008mm≤450kN/cm6000mm1°30'20~600mm8Times/min11KW6480*2100*235018000Kg
10*250010mm≤450kN/cm2500mm20~600mm9Times/min11KW3040*1700*17007300Kg
10*320010mm≤450kN/cm3200mm20~600mm9Times/min11KW3860*1700*17008000Kg
10*400010mm≤450kN/cm4000mm20~600mm8Times/min11KW4650*2100*200012050Kg
10*600010mm≤450kN/cm6000mm20~1000mm5Times/min15KW6500*2100*230024000Kg
12*250012mm≤450kN/cm2500mm20~600mm9Times/min18.5KW3140*2150*20009000Kg
12*320012mm≤450kN/cm3200mm20~600mm9Times/min18.5KW3880*2150*200010800Kg
12*400012mm≤450kN/cm4000mm20~600mm8Times/min18.5KW4680*2150*200013000Kg
12*500012mm≤450kN/cm5000mm20~750mm6Times/min18.5KW5900*2150*200016000Kg
12*600012mm≤450kN/cm6000mm20~750mm5Times/min18.5KW6900*2600*270029500Kg
12*800012mm≤450kN/cm8000mm20~1000mm5Times/min18.5KW9000*3500*350046500Kg
16*250016mm≤450kN/cm2500mm2°30'20~600mm9Times/min22KW3140*2150*200011000Kg
16*320016mm≤450kN/cm3200mm2°30'20~600mm8Times/min22KW3880*2150*200013000Kg
16*400016mm≤450kN/cm4000mm2°30'20~600mm8Times/min22KW4650*2150*220016300Kg
16*500016mm≤450kN/cm5000mm2°30'20~750mm6Times/min22KW5900*2600*270020000Kg
16*600016mm≤450kN/cm6000mm2°30'20~750mm5Times/min22KW6900*2700*270036000Kg
16*800016mm≤450kN/cm8000mm2°30'20~1000mm5Times/min22KW9000*3500*350075000Kg
20*250020mm≤450kN/cm2500mm20~1000mm8Times/min22KW3440*2300*250015800Kg
20*320020mm≤450kN/cm3200mm20~1000mm8Times/min22KW4150*2350*270018500Kg
20*400020mm≤450kN/cm4000mm20~1000mm5Times/min22KW4850*2600*270021500Kg
20*600020mm≤450kN/cm6000mm20~1000mm4Times/min30KW6700*3000*300047000Kg
25*250025mm≤450kN/cm2500mm20~1000mm8Times/min37KW3200*2700*290019000Kg
25*320025mm≤450kN/cm3200mm20~1000mm5Times/min37KW4200*2700*290023000Kg
30*250030mm≤450kN/cm2500mm20~1000mm4Times/min37KW3300*2900*300023500Kg
30*320030mm≤450kN/cm3200mm3°30'20~1000mm4Times/min40KW4200*2900*320026000Kg
40*250040mm≤450kN/cm2500mm20~1000mm3Times/min55KW3200*3300*300038000Kg
40*320040mm≤450kN/cm2500mm1000mm3Times/min55KW4300*3300*320049000Kg
  • Validity period: 2021.07.20
