series

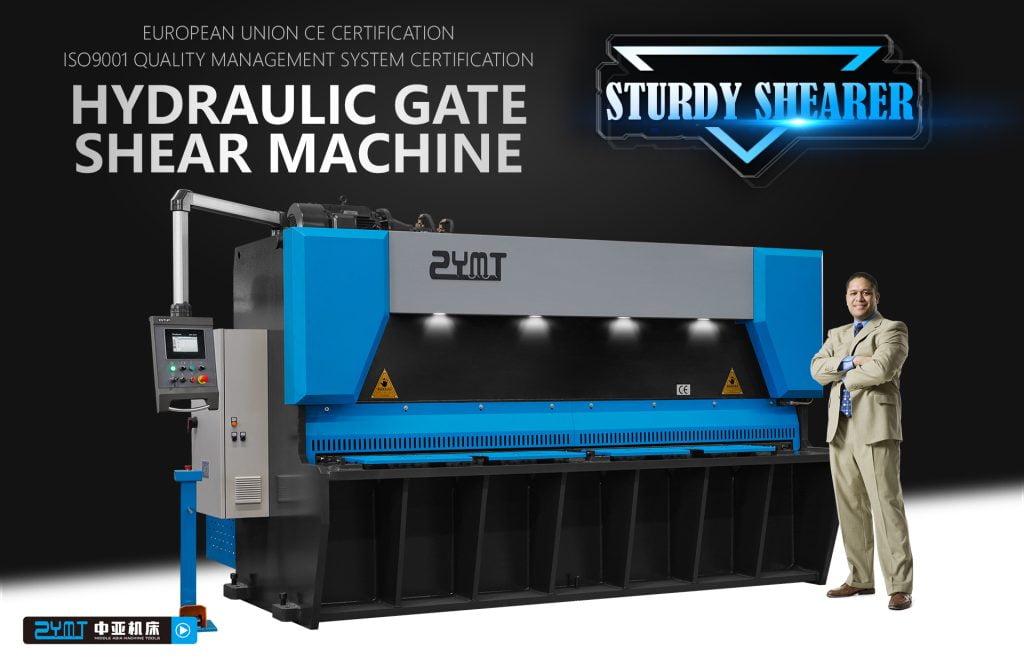

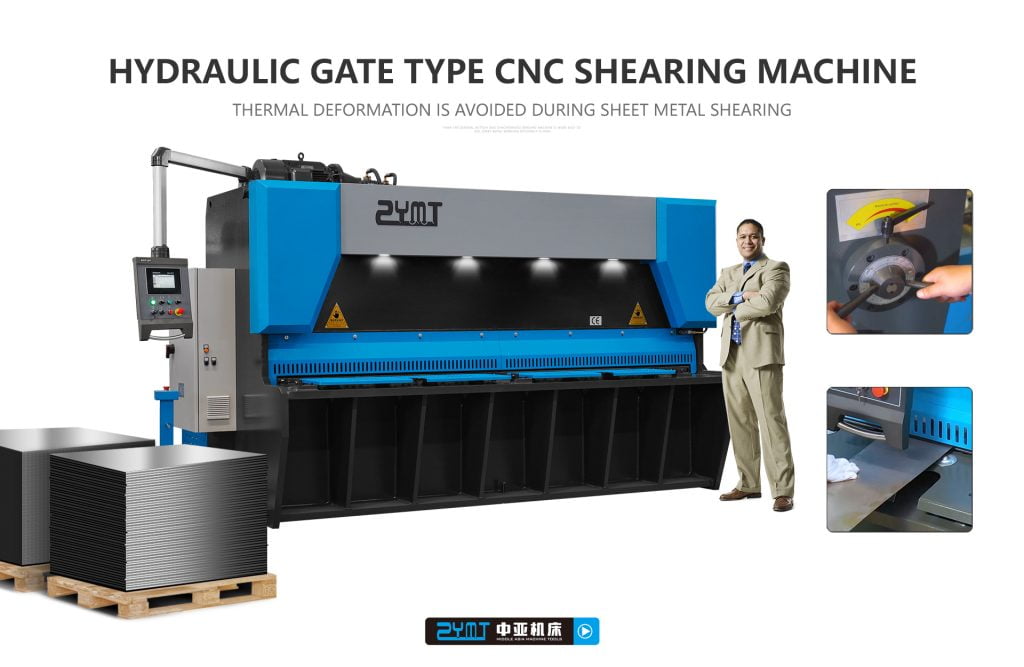

Hydraulic Guillotine Shears

Exterior

  • Support user-customized colors and styles

Main Feature

  • Three-point support rolling guide (Lower eccentric shaft, front support shaft, upper eccentric shaft)
  • Do linear vertical motion
  • Hydraulic oil cylinder do linear vertical motion
  • 100% hydraulic pressure acting on cutting edge
  • Adjustable cutting angle, different cutting angles are applied for cutting plates with different thicknesses
  • Suitable for cutting thicker plate with better cutting quality

Features

Allow Shear Angle

Efficient

Safety

Accessories

ZYMT has reached cooperation with customers in a flexible way of sales, and customers can purchase relevant accessories at will according to their needs.

Numerical control system, back gauge, front support, safety protection equipment, main motor, hydraulic system, air cooling.

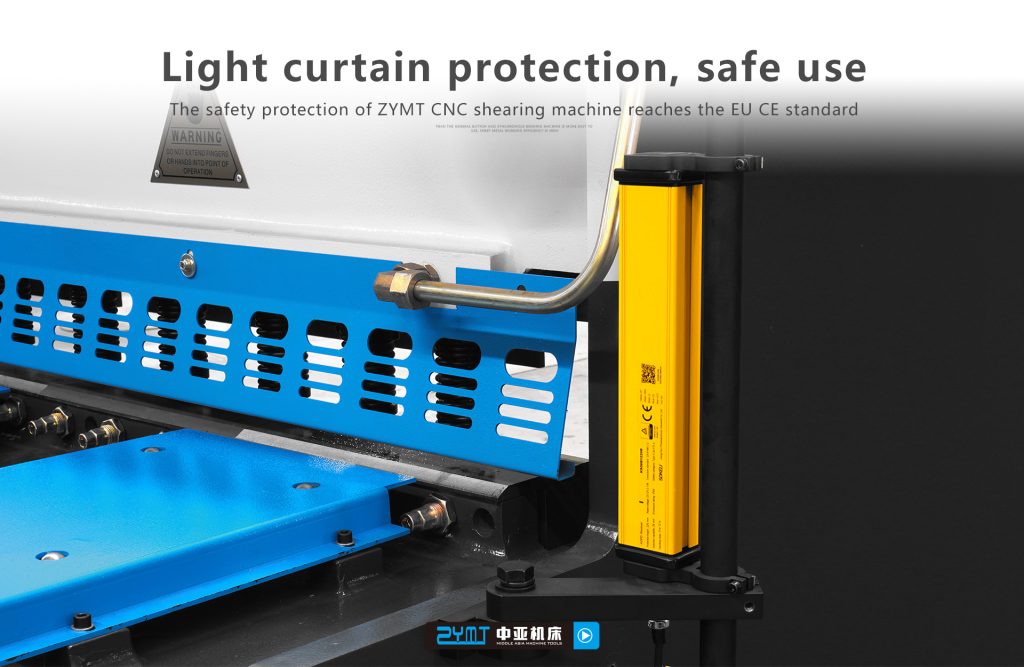

Laser safety protection

  • Laser induction.
  • Being blocked will abort the cut.
  • high sensitivity.
  • Does not block the cut.
  • Adjustable position and angle.

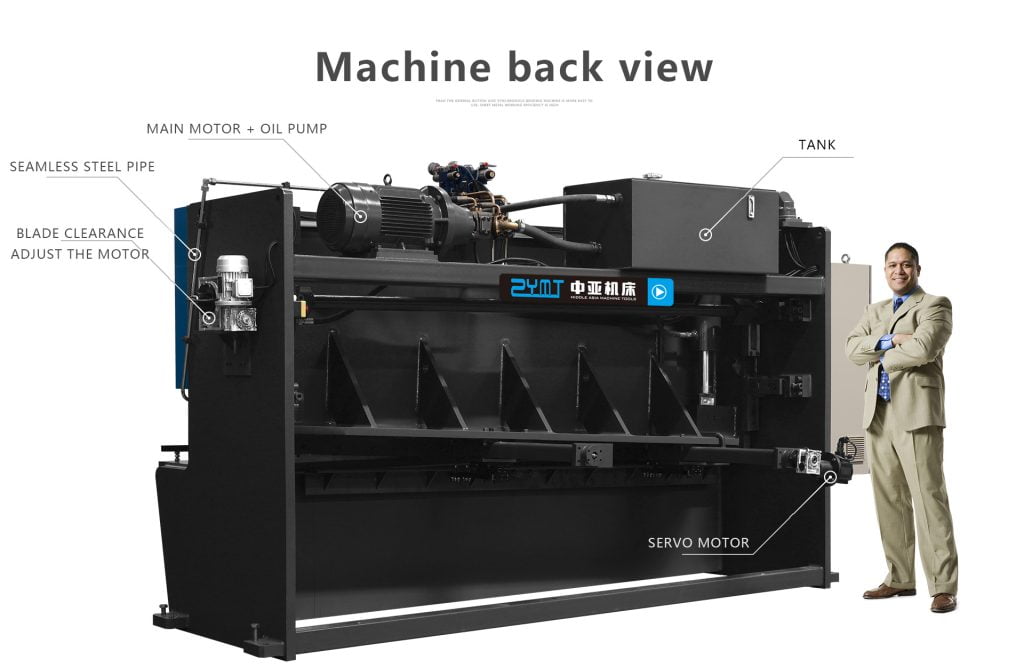

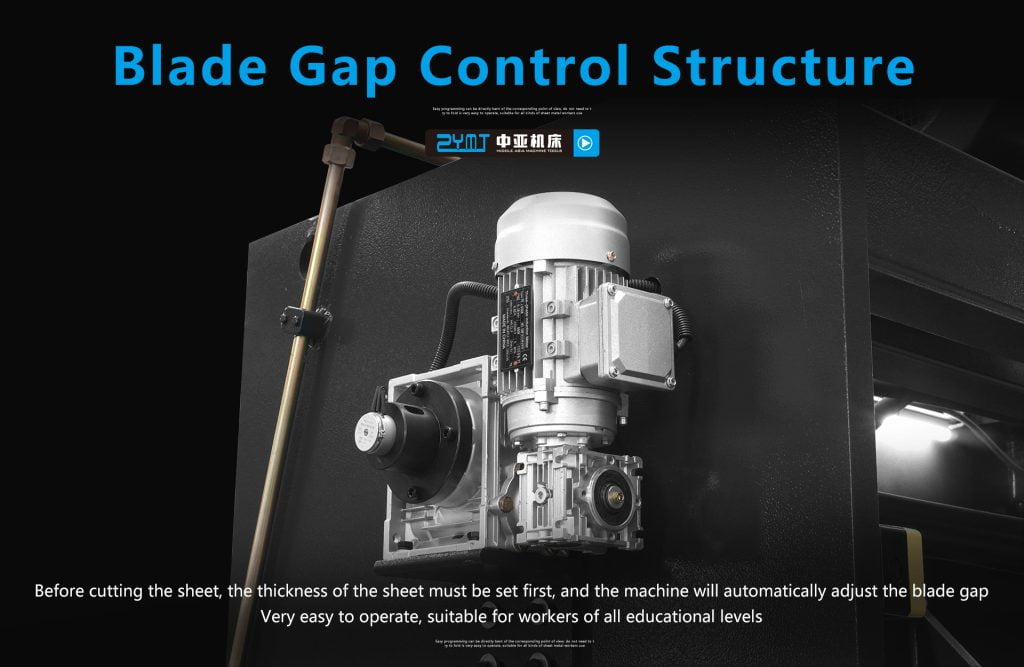

Automatic blade clearance

  • Automatically adjust the blade gap.
  • It is composed of AC motor and reducer.
  • CNC precision control.

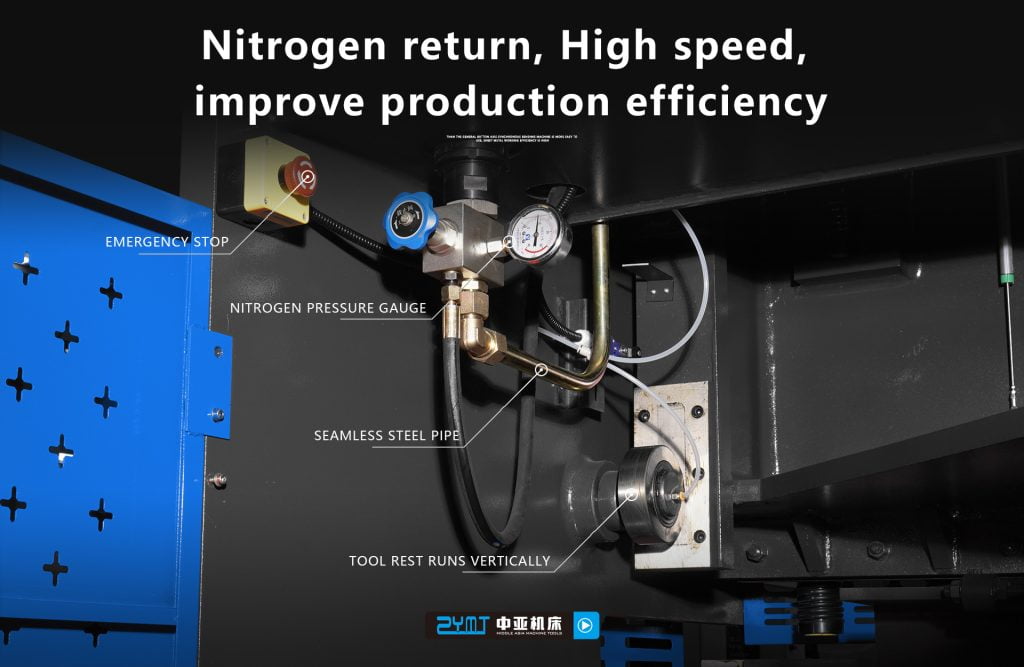

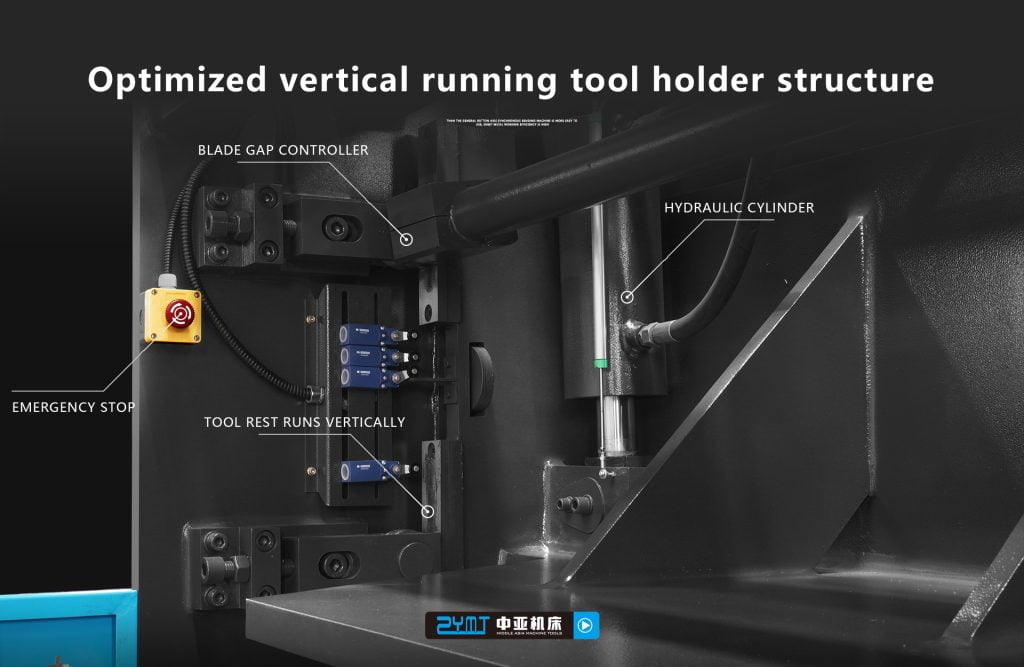

Tool holder structure assembly

  • The upper fulcrum controls the blade gap.
  • A variety of itinerary presets.
  • 100% hydraulic pressure action shear.
  • The cutting angle is different.
  • Emergency stop button on the back.

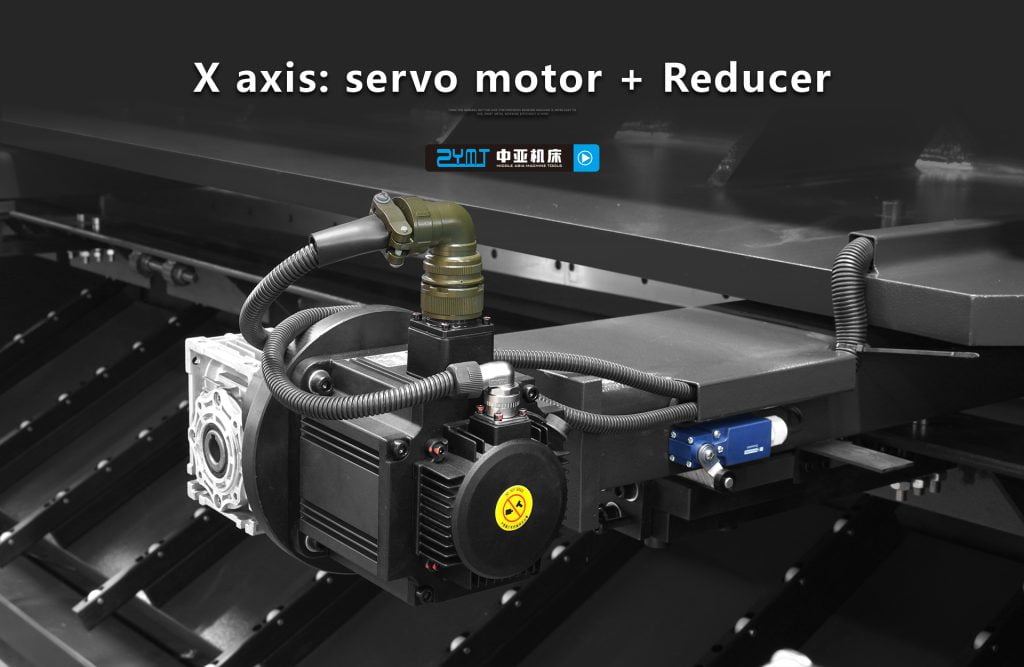

Servo Motor

  • Brand Servo Motor
  • Cooperate with reducer control
  • With brake
  • CNC positioning
  • Fast and accurate

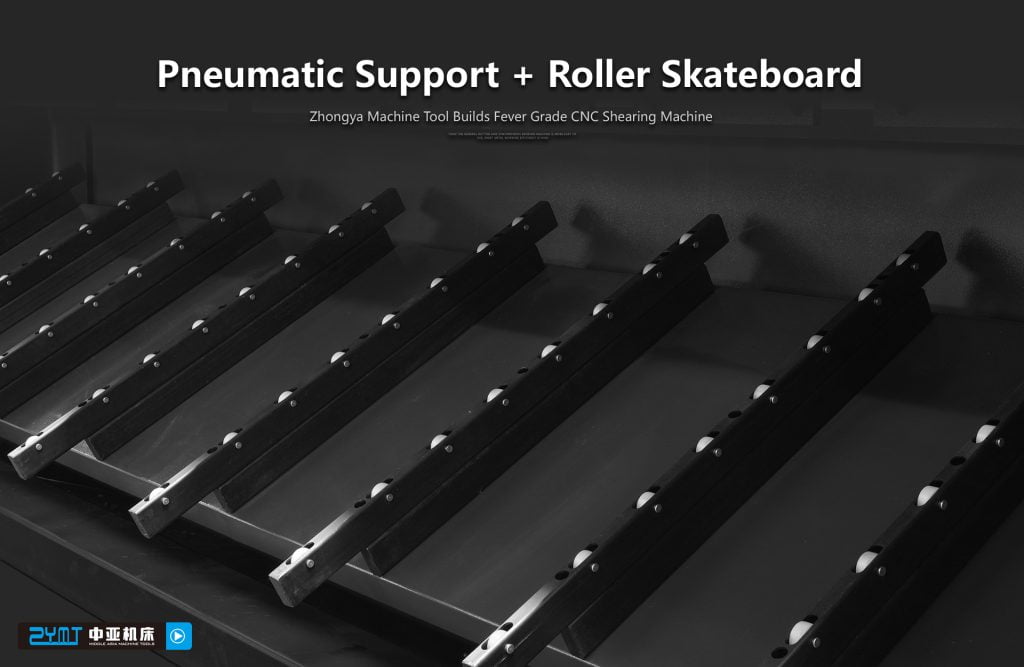

Pneumatic Pallet

  • High-pressure gas drive.
  • The supporting material prevents deformation of the sheet.
  • Ball slip.
  • Low maintenance.

CNC Systems

We plan to produce more touch screen controlled bending machines in the future.

Customers can freely choose the CNC system.

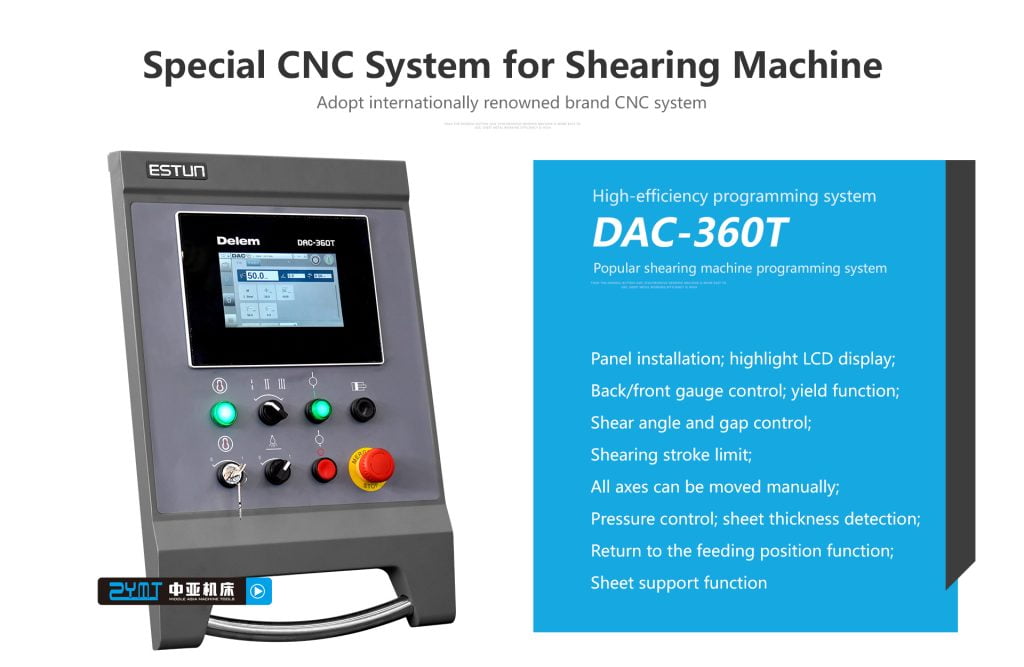

Delem DAC-360T

ESTUN E200ps

ESTUN E21

Customer case

  • We have a sales history in more than 100+ countries, and have held more than 130+ exhibitions in total, with 100k+ visitors.

Production line

  • Press Brake High-speed production line workshop
  •  Export Press Brake production workshop

Specs

ModelMaximum shear thicknessMaterial yield strengthMaximum cutting lengthShear angleBackgauge strokeMain motor powerL*W*H(mm)Weight
6*25006mm≤450kN/cm2500mm1~3°750mm7.5kW3140*1740*20404200Kg
6*32006mm≤450kN/cm3200mm1~3°750mm7.5KW3750*1770*21505700Kg
6*40006mm≤450kN/cm4000mm1~3°750mm11KW4830*1840*21508500Kg
6*50006mm≤450kN/cm5000mm1~3°750mm11KW5830*1840*215011000Kg
6*60006mm≤450kN/cm6000mm1~3°750mm11KW6480*2100*230014000Kg
8*25008mm≤450kN/cm2500mm1~3°750mm11KW3040*1700*17004400Kg
8*32008mm≤450kN/cm3200mm1~3°750mm11KW3860*1700*17006000Kg
8*40008mm≤450kN/cm4000mm1~3°750mm11KW4640*1700*17008900Kg
8*50008mm≤450kN/cm5000mm1~3°750mm11KW5400*2400*200011500Kg
8*60008mm≤450kN/cm6000mm1~3°750mm11KW6480*2100*235016000Kg
8*80008mm≤450kN/cm8000mm1~3°750mm11KW8580*2130*235029500Kg
10*250010mm≤450kN/cm2500mm1~3°750mm15KW3040*1800*17006500Kg
10*320010mm≤450kN/cm3200mm1~3°750mm15KW3850*1830*19008000Kg
10*400010mm≤450kN/cm4000mm1~3°750mm15KW4650*2100*200012000Kg
10*500010mm≤450kN/cm5000mm1~3°750mm15KW5750*2100*200016000Kg
10*600010mm≤450kN/cm6000mm1~3°750mm15KW6500*2100*230024000Kg
10*800010mm≤450kN/cm8000mm1~3°750mm15KW6800*2100*230032000Kg
13*250013mm≤450kN/cm2500mm1~3°750mm15KW3285*1830*23908500Kg
13*320013mm≤450kN/cm3200mm1~3°750mm18.5KW3855*1830*239010000Kg
13*400013mm≤450kN/cm4000mm1~3°1000mm18.5KW4850*1830*239013500Kg
13*600013mm≤450kN/cm6000mm1~3°1000mm18.5KW6850*1930*265026000Kg
13*800013mm≤450kN/cm8000mm1~3°1000mm18.5KW8950*2130*285046000Kg
13*900013mm≤450kN/cm9000mm1~3°1000mm18.5KW9980*2130*285065000Kg
13*1000013mm≤450kN/cm10000mm1~3°1000mm18.5KW11050*2500*310085000Kg
16*250016mm≤450kN/cm2500mm1~3°1000mm22KW3440*1940*283013000Kg
16*320016mm≤450kN/cm3200mm1~3°1000mm22KW4010*1940*283015000Kg
16*400016mm≤450kN/cm4000mm1~3°1000mm22KW5010*1980*283016500Kg
16*500016mm≤450kN/cm5000mm1~3.5°1000mm22KW5900*2600*283025000Kg
16*600016mm≤450kN/cm6000mm1~3.5°1000mm22KW6900*2600*283031000Kg
16*800016mm≤450kN/cm8000mm1~3.5°1000mm22KW8900*2900*343075000Kg
20*250020mm≤450kN/cm2500mm1~3.5°1000mm22KW3440*1980*283017000Kg
20*320020mm≤450kN/cm3200mm1~3.5°1000mm30KW4010*1900*283020000Kg
20*400020mm≤450kN/cm4000mm1~3.5°1000mm30KW4850*2600*290022000Kg
20*600020mm≤450kN/cm6000mm1~3.5°1000mm30KW6700*3000*300050000Kg
30*250030mm≤450kN/cm2500mm1~3.5°1000mm37KW3440*1900*283029000Kg
30*320030mm≤450kN/cm3200mm1~3.5°1000mm37KW4200*1900*300038000Kg
40*250040mm≤450kN/cm2500mm1~3.5°1000mm37KW3440*2000*300038000Kg
  • Validity period: 2021.07.20
