series

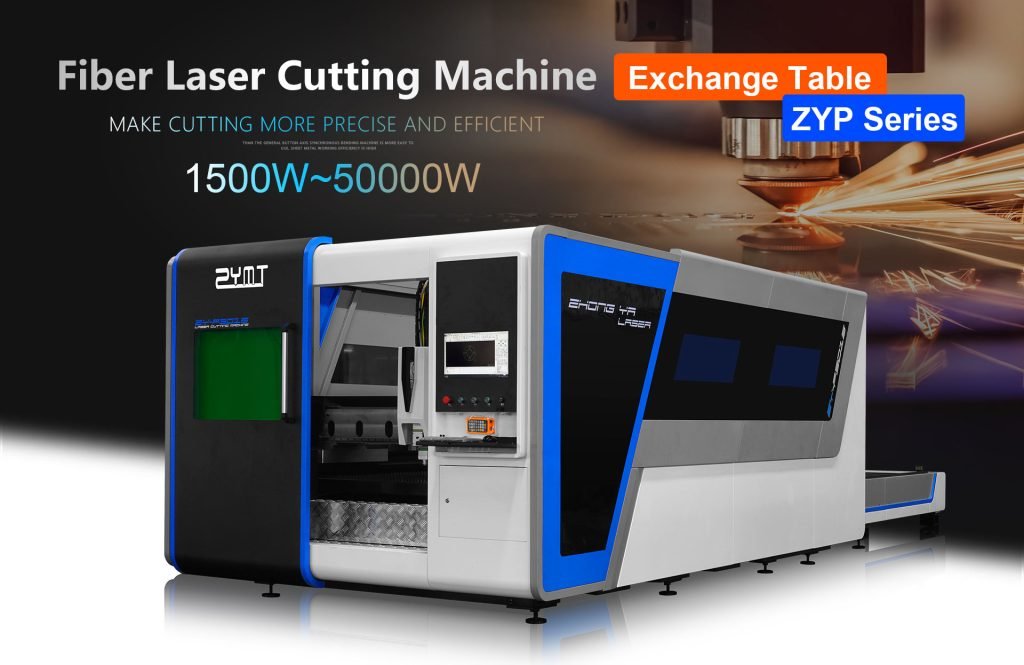

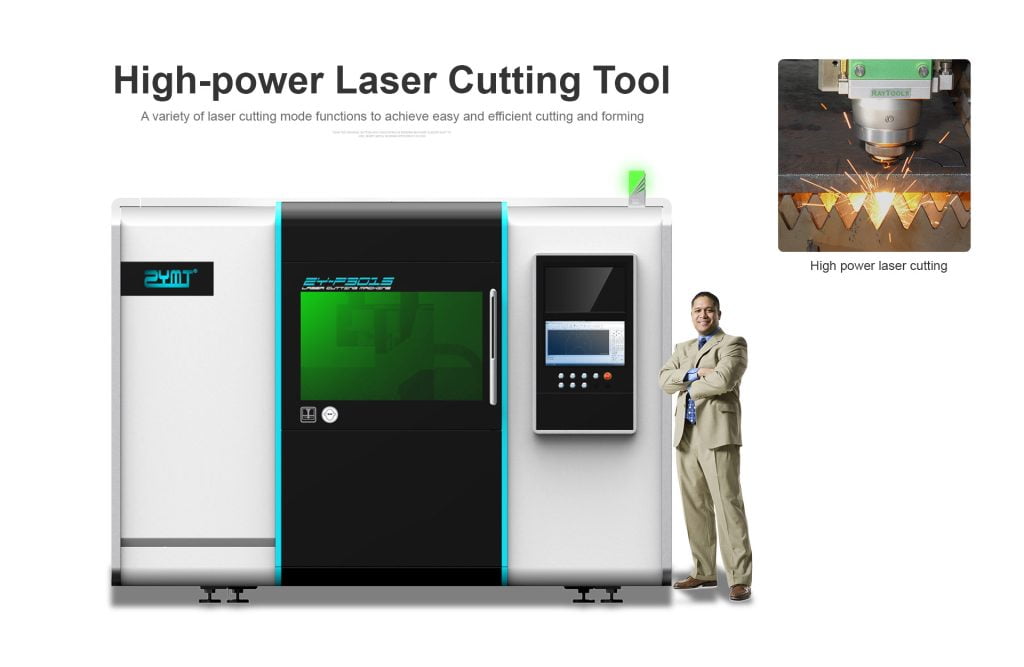

Closed Type Fiber Laser Cutting Machine

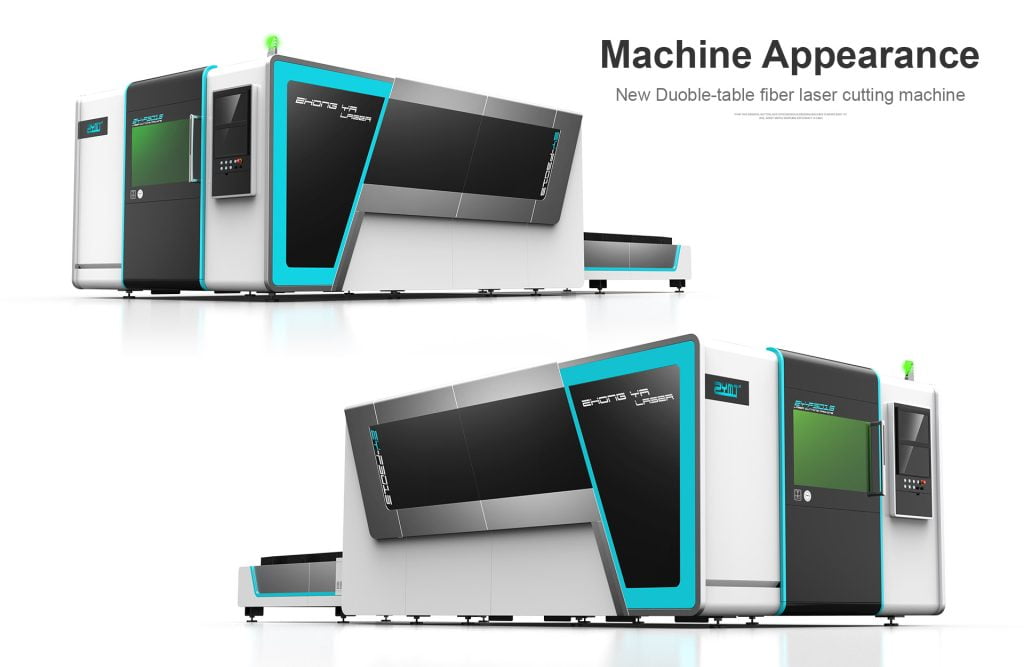

Double worktable laser cutting machine

Suitable for cutting medium-thick plates

● Closed processed environment, anti-dust, anti-smoke, safety, and environment-friendly.
Entirely heavy entry structure machine body, high strength aluminum-casted gantry, good rigidity, stable performance.
● Imported high precision transmission device which is perfectly working with the Servo system, thus it can make sure cutting precision and efficiency.
● Professional laser cutting CNC system. Automatically track edge and layout material.
● Improve the efficiency of metal utilization and production.
● Optional high-speed exchangeable table, simplify the work process and save time.

Laser Power: 3000 – 20000W

Laser cutting video

Laser cutting is suitable for 3000W-20000W laser power, and the cutting thickness is related to the laser power.

Tempering processing machine frame

The internal structure of the bed is welded by multiple rectangular pipes, and a reinforced rectangular tube is arranged inside the bed to increase the strength and tensile resistance of the bed, increase the tensile resistance and stability of the guide rail surface, and effectively avoid the deformation of the bed. After the bed is tempered, the internal stress can be completely released, and the internal stress can be almost ignored, so that the accuracy of the machine tool can be maintained for a long time.

2nd generation cast aluminum beam

Cast aluminum

Light weight, good dynamic performance of beam

Honeycomb structure

Resistance to deformation, uniform texture

High strength

High-pressure casting process, no porosity, no blisters

Large touch screen

The Bochu Laser intelligent operating system integrates a variety of advanced functions to easily achieve high-efficiency production.

High and low exchange table

saving loading and unloading time. High-low exchange table, complete one exchange ≤15S, greatly improve processing efficiency,
Save labor costs. Exchange the middle of the motor, the rear worktable has more space for loading and unloading, and the sheet metal cover will not be damaged.

Automatic focusing cutting head

Equipped with an automatic focusing cutting head, which can automatically and accurately adjust the focus according to the thickness of the material, suitable for a variety of focal lengths;
Shorten piercing time, improve piercing quality, high-speed cutting, and save time.

Smart remote

The button setting is simple and clear, one-button wireless control: calibration, blowing, simulation, cutting, pause, etc.;
Magnetic design, easy to handle, easy to work.

Reliable laser generator

IPG

IPG Photonics Corporation. Imported from Germany

MAX

maxphotonics, Innovation and technology are the cornerstones of our development

Application industry

Kitchenware lamps, hardware cabinets, sheet metal processing, auto parts, refrigerators, air conditioners, elevators, hotel metal supplies

Specs

ModelZYP-3015ZYP-4015ZYP-4020ZYP-6020ZYP-6025ZYP-8025
Cutting range3000~1500mm4000~1500mm4000~2000mm6000~2000mm6000~2500mm8000~2500mm
Laser Power3~20Kw3~20Kw3~20Kw3~20Kw3~20Kw3~20Kw
Max.Acceleration20m/s220m/s220m/s220m/s220m/s220m/s2
Peatability0.02mm0.02mm0.02mm0.02mm0.02mm0.02mm
Repeatability0.03mm0.03mm0.03mm0.03mm0.03mm0.03mm
