Hydraulic Shearing Machine

All hydraulic shearing machine uses the same technique in cutting where there are a fixed upper blade, a lower blade, and an adjustable clearance separating the two. When a force is applied on the upper blade it forces the lower blade to cut and separate the metal into two. With shear machining, the tool’s cutting edge removes the metal from the plate. While this happens, maximum pressure is applied. The tool, however, only touches the metal one time.

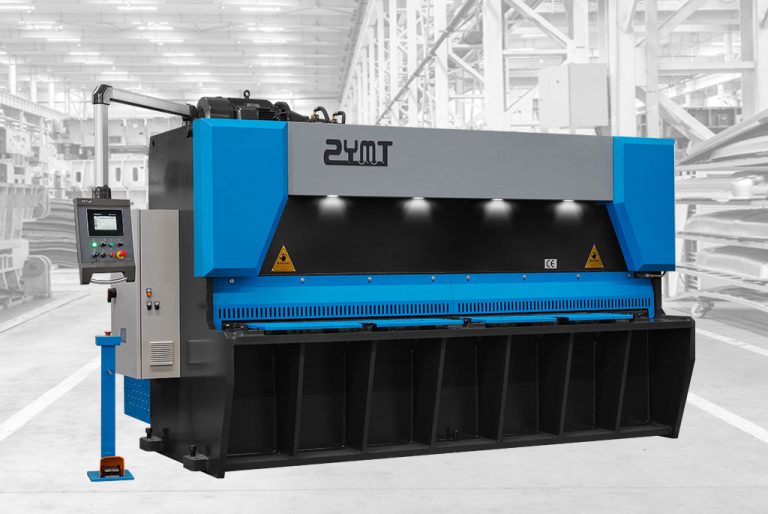

ZYS series

100% hydraulic pressure acting on cutting edge

Adjustable cutting angle, different cutting angles are applied for cutting plates with different thicknesses

Suitable for cutting thicker plate with better cutting quality

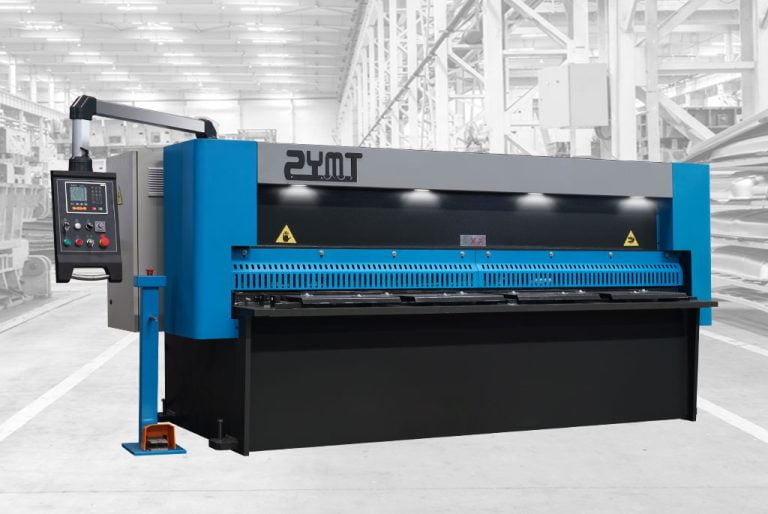

QC12K series

Unipivot support, lever principle

Hydraulic oil cylinder fixed in an oblique direction

75% acting force, 25% loss

Fixed cutting angle and blade carrier angle
