series

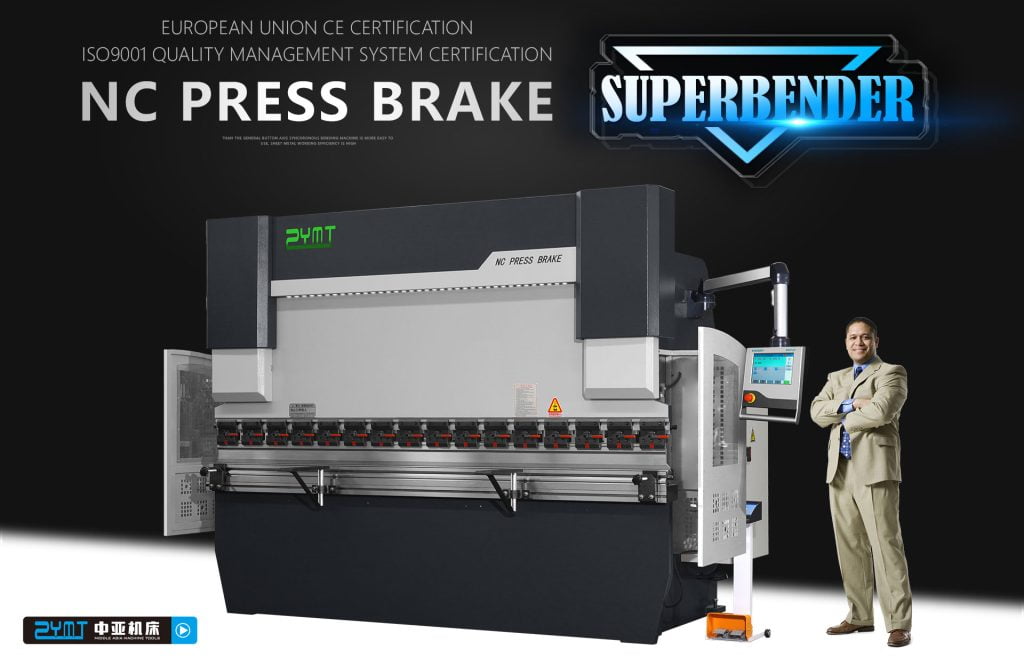

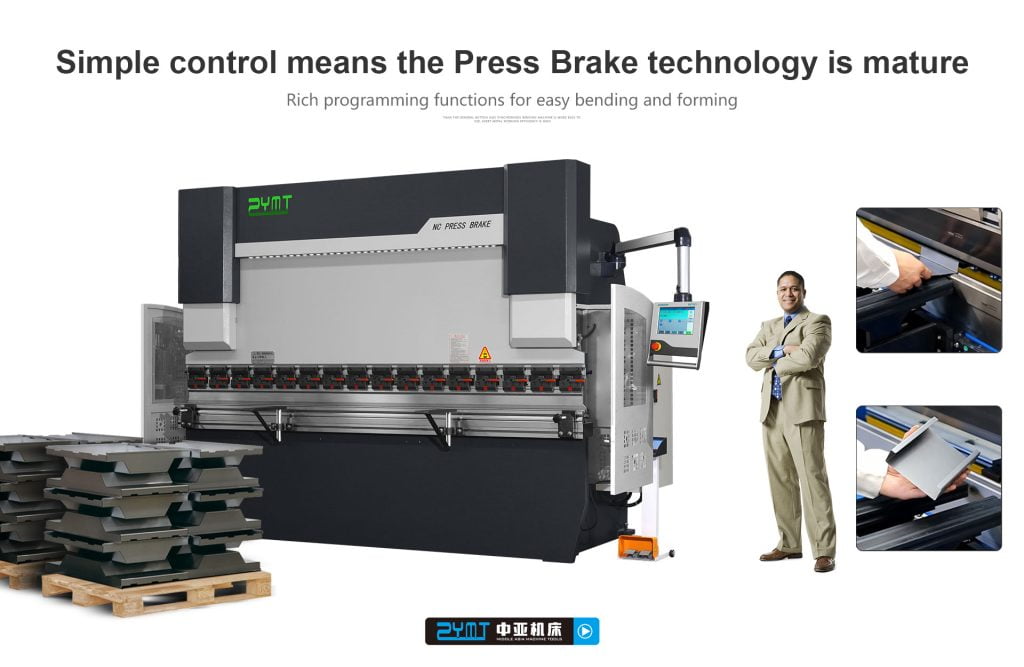

NC Press Brake

Exterior

  • Support user-customized colors and styles

Main Feature

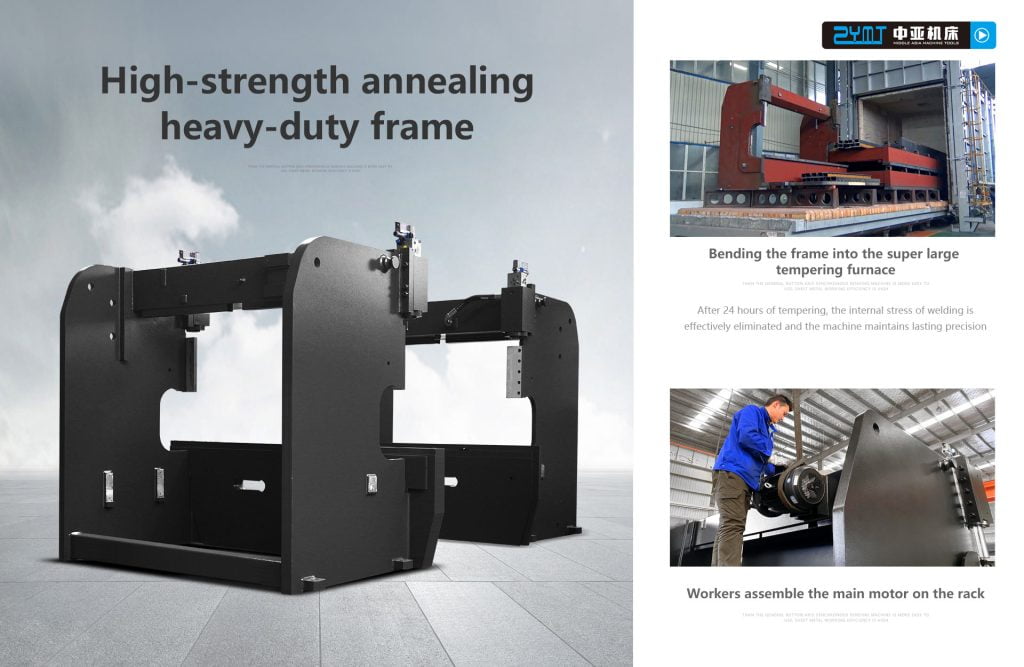

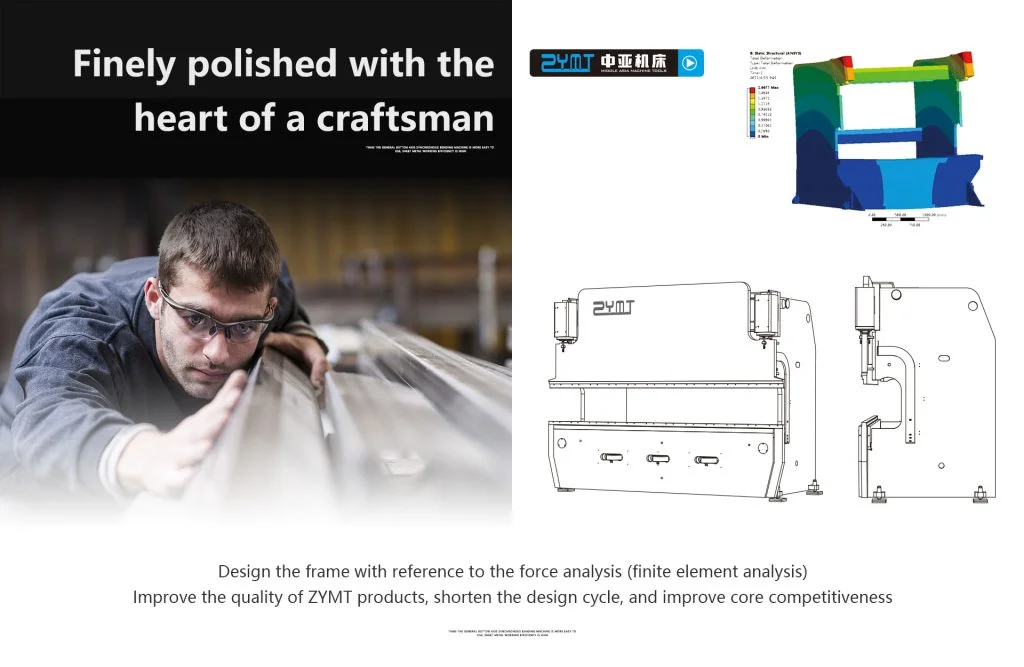

● Whole steel welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity;
Torsion bar with hydraulics;
● Integrated hydraulic system, upper transmission, pressure control for adjustment of tonnage;

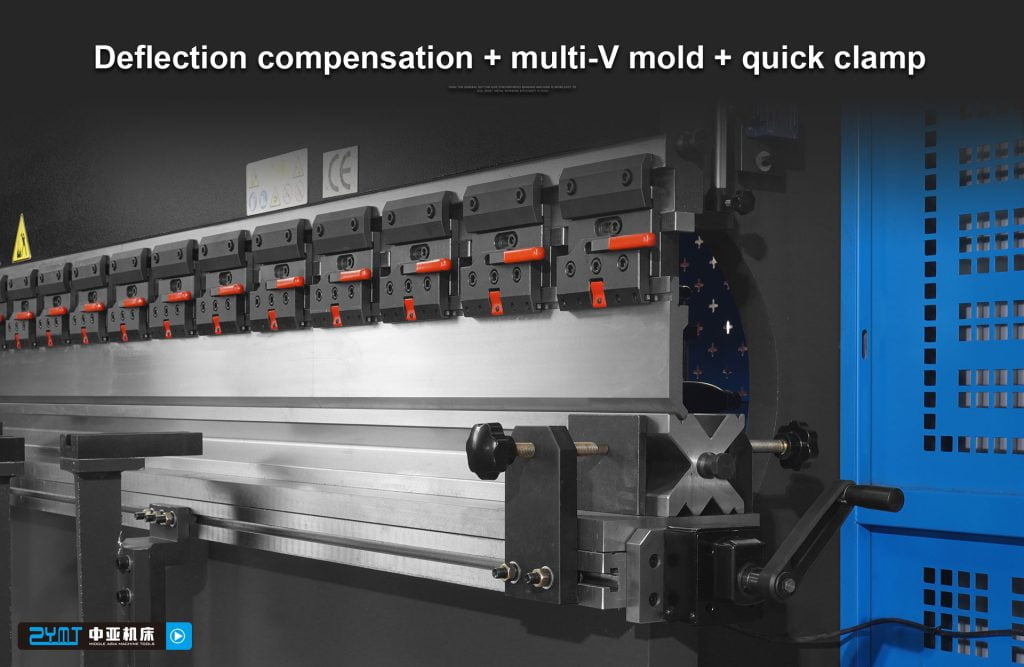

● Segmented upper punch, multi-V die;
● Back gauge and upper ram travel automatic control, micro adjustment by manual and digital displayer;
● International standard electrics and switches;

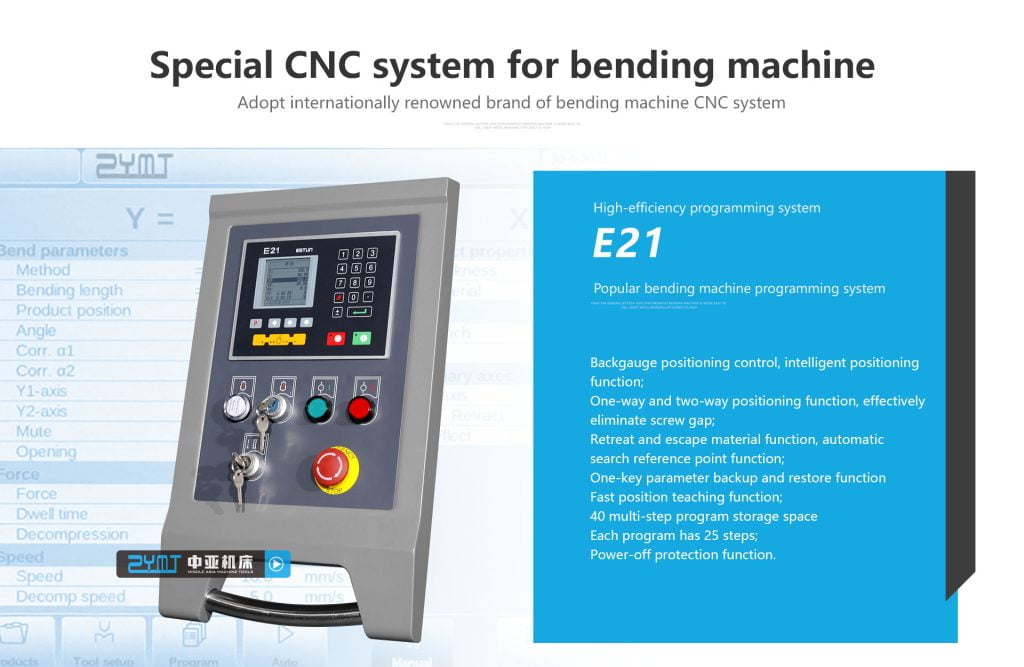

● Can equip kinds of NC controllers: Estun E21/E300P/CT8.

Features

Precise

Reliable

Durable

Accessories

ZYMT pays attention to the practical performance of the NC bending machine, the details reflect the thickness of the stack and the stable and reliable structure. ZYMT is willing to reach cooperation with customers through flexible sales methods, and customers can purchase relevant accessories at will according to their needs.

Numerical control system, back gauge, front support, safety protection equipment, main motor, hydraulic system, air cooling.

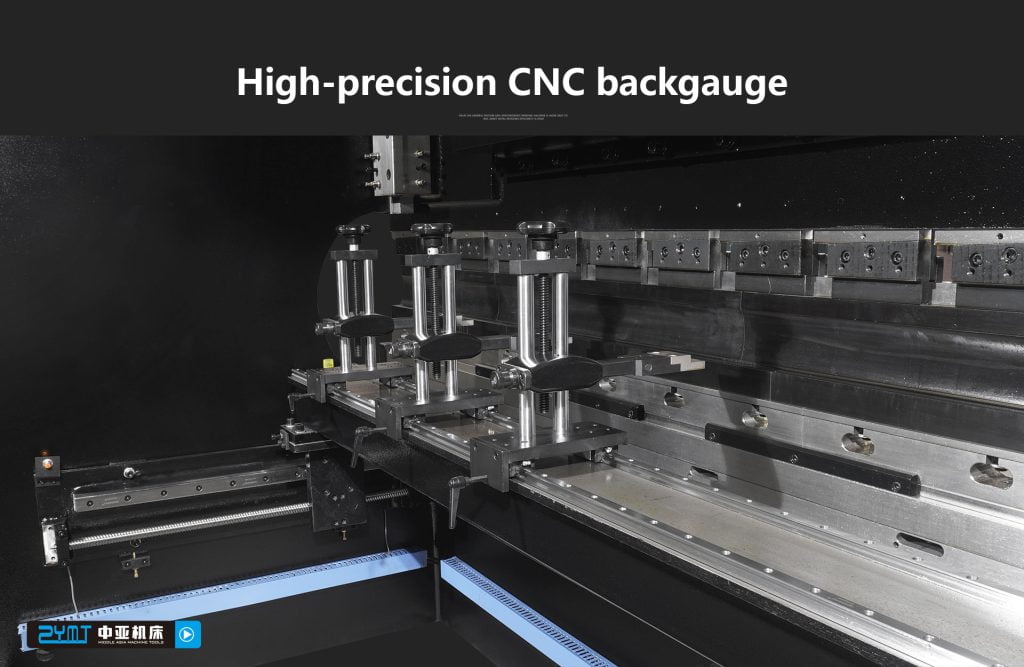

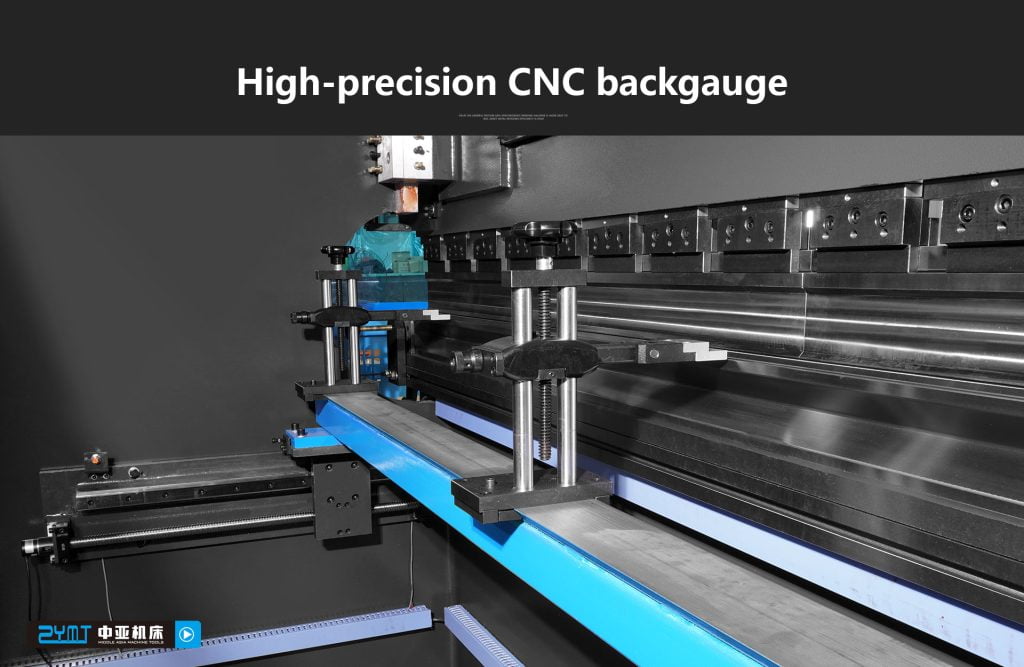

CNC Backgauge assembly (X-axis)

Ball screw and linear guide (X-axis)

  • Using high-precision, hard, rust-free linear guide rail and ball screw as the positioning mechanism of the X axis, it has the advantages of precise positioning, no beads falling, and high synchronization accuracy.
  • The finger has a fine adjustment function, and the height of the finger can be adjusted through the joystick.

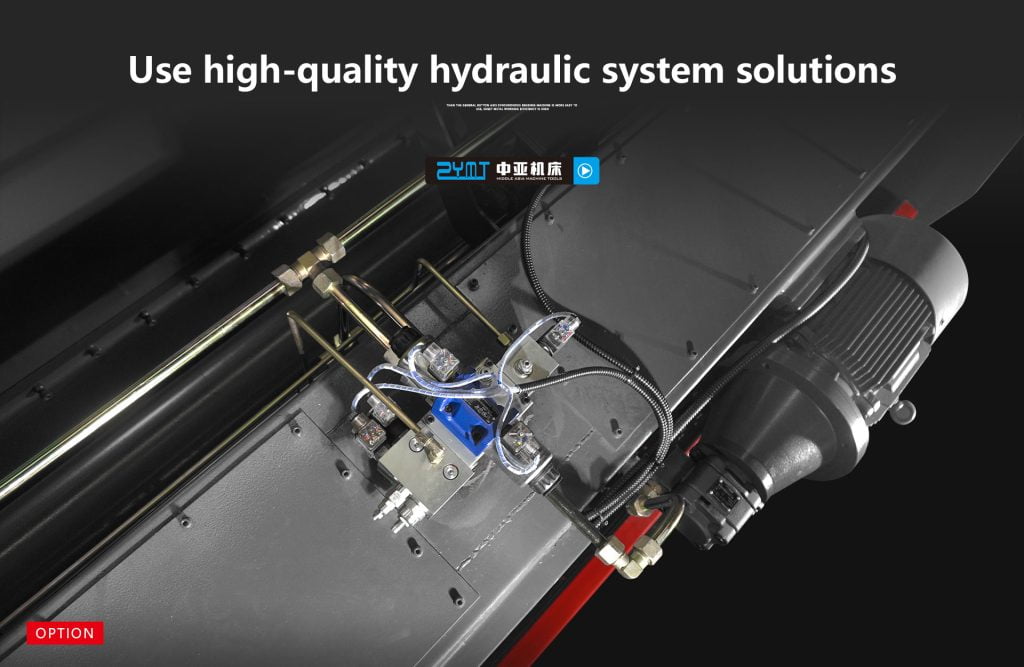

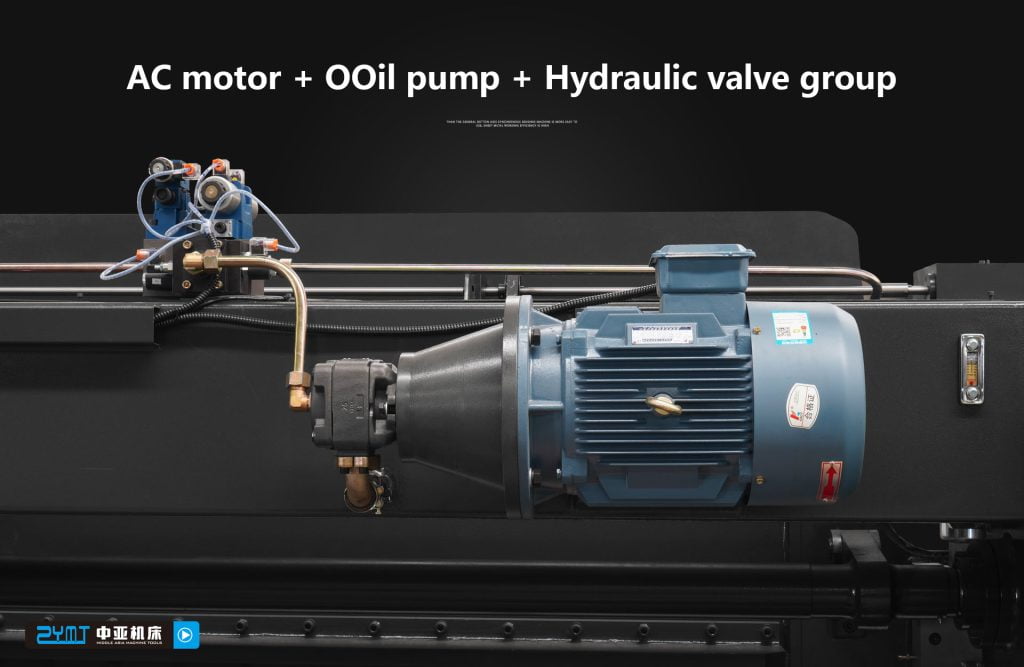

Hydraulic system assembly

Hydraulic system V1.0

  • ZYMT adopts a stable and durable overall hydraulic system solution to provide stable pressure for continuous bending.
  • The motor and the oil pump cooperate with the hydraulic valve to distribute enough hydraulic pressure to the oil cylinder to make bending easier.

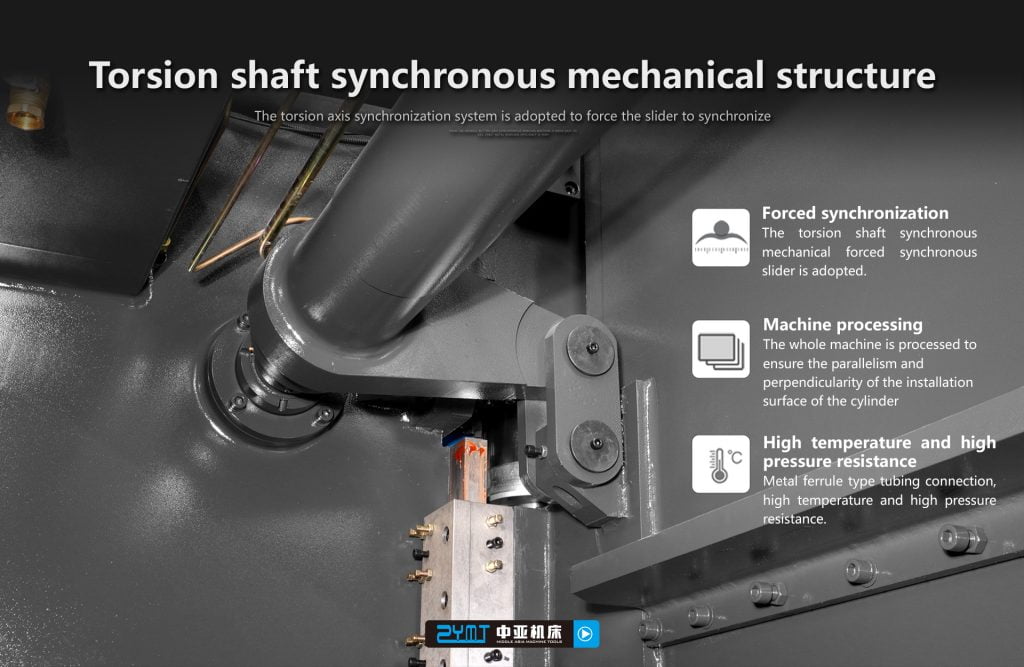

Torsion shaft synchronization assembly

Torsion shaft synchronization

  • ZYMT uses high-density forged carbon steel rods as the main shaft, which has sufficient strength and elasticity.
  • The lubrication assembly makes daily maintenance easier.

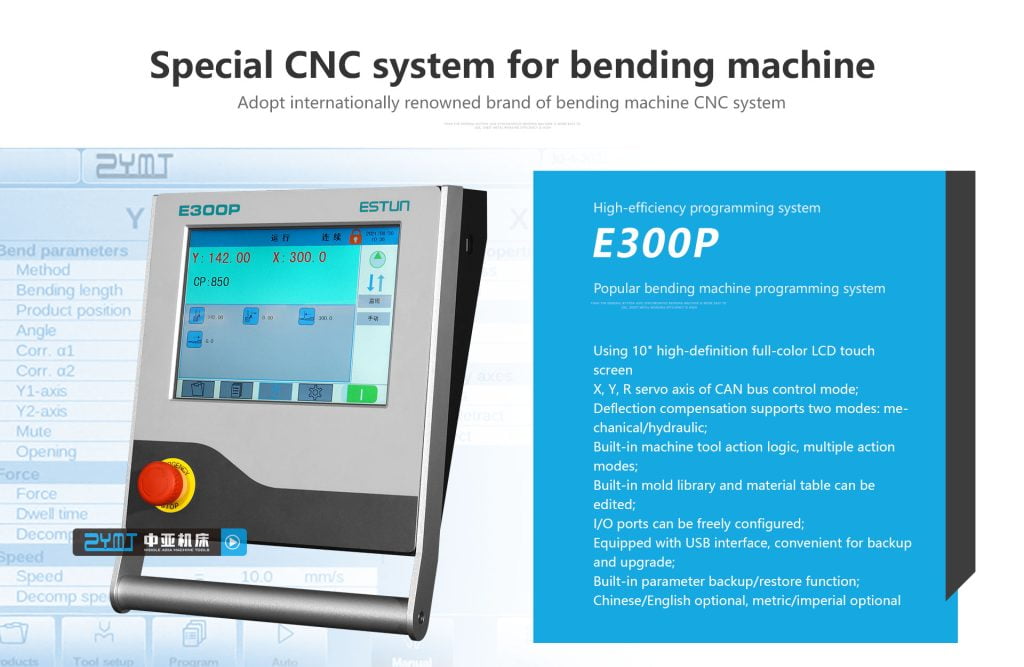

CNC Systems

We plan to produce more touch screen controlled bending machines in the future.

Customers can freely choose the CNC system.

Customer case

  • We have a sales history in more than 100+ countries, and have held more than 130+ exhibitions in total, with 100k+ visitors.

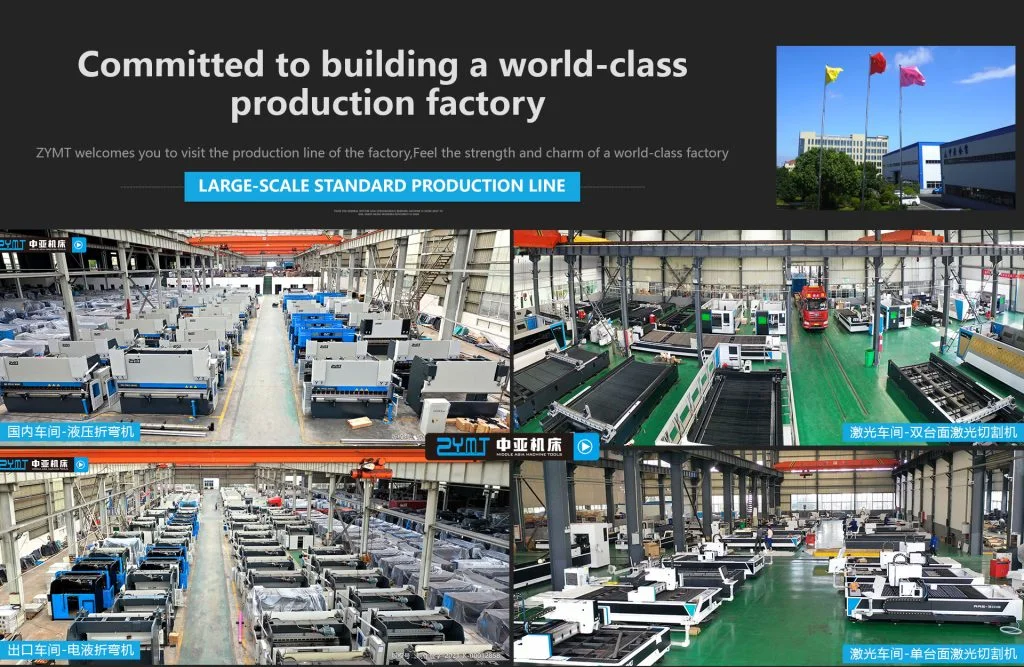

Production line

  • Press Brake High-speed production line workshop
  •  Export Press Brake production workshop

Large bending machine case

  • Only part of the large-scale bending machine cases can be displayed here. If you need more local user cases, please contact our salesperson.

Professional Employees

  • We have professional employees who carefully manufacture every piece of equipment to create and maintain the status of the ZYMT brand in the hearts of customers.

Specs

ModelNominal pressureMaximum bending lengthColumn spacingThroat depthSlide strokeMaximum opening heightMain motor powerL*W*H(mm)Weight
ABDCE
40t/2200400Kn2200mm1850mm220mm100mm320mm5.5KW2200*1200*19102750Kg
40t/2500400Kn2500mm1850mm220mm100mm320mm5.5KW2500*1200*19103000Kg
50t/2200500Kn2200mm1850mm220mm100mm320mm5.5KW2000*1200*19102950Kg
50t/2500500Kn2500mm1850mm220mm100mm320mm5.5KW2500*1210*20003400Kg
63t/2500630Kn2500mm1900mm260mm120mm320mm5.5KW2500*1300*22104000Kg
63t/3200630Kn3200mm2560mm260mm120mm320mm5.5KW3200*1300*22104800Kg
80t/2500800Kn2500mm1980mm320mm120mm320mm7.5KW2500*1400*23005700Kg
80t/3200800Kn2500mm2650mm320mm120mm350mm7.5KW3200*1500*23006020Kg
80t/4000800Kn4000mm3350mm320mm120mm350mm7.5KW4000*1500*24007000Kg
100t/25001000Kn2500mm1980mm320mm150mm400mm7.5KW2500*1600*24006000Kg
100t/32001000Kn3200mm2650mm320mm150mm400mm7.5KW3200*1600*26006800Kg
100t/40001000Kn4000mm3350mm320mm150mm400mm7.5KW4000*1600*27008400Kg
125t/25001250Kn2500mm1980mm320mm150mm400mm11KW2500*1600*24006500Kg
125t/32001250Kn3200mm2650mm320mm150mm400mm11KW3200*1600*26007200Kg
125t/40001250Kn4000mm3350mm320mm150mm400mm11KW4000*1600*27008800Kg
160t/32001600Kn3200mm2650mm320mm200mm460mm11KW3200*1700*270010500Kg
160t/40001600Kn3200mm3350mm320mm200mm460mm11KW4000*1700*280011500Kg
160t/50001600Kn4000mm4000mm320mm200mm460mm11KW5000*1900*310014000Kg
160t/60001600Kn6000mm4900mm320mm200mm460mm11KW6300*1900*320019500Kg
200t/32002000Kn3200mm2650mm320mm200mm460mm11KW3200*1950*280012500Kg
200t/40002000Kn4000mm3350mm320mm200mm460mm11KW4000*1950*280013600Kg
200t/50002000Kn5000mm4000mm320mm200mm460mm11KW5000*1950*310014500Kg
200t/60002000Kn6000mm4900mm320mm200mm460mm11KW6000*1950*330021000Kg
250t/32002500Kn3200mm2500mm400mm250mm530mm18.5KW3250*2000*320019000Kg
250t/40002500Kn4000mm2900mm400mm250mm530mm18.5KW4000*2000*340020200Kg
250t/50002500Kn5000mm4000mm400mm250mm530mm18.5KW5000*2000*340023500Kg
250t/60002500Kn6000mm5000mm400mm250mm530mm18.5KW6000*2000*340027500Kg
300t/32003000Kn3200mm2500mm400mm250mm530mm22KW3200*2000*345020500Kg
300t/40003000Kn4000mm2900mm400mm250mm530mm22KW4000*2000*345022500Kg
300t/50003000Kn5000mm4000mm400mm250mm530mm22KW5000*2000*345025000Kg
300t/60003000Kn6000mm5000mm400mm250mm530mm22KW6000*2000*345030000Kg
400t/40004000Kn4000mm2900mm400mm250mm530mm30KW4000*2180*350025000Kg
400t/50004000Kn5000mm4000mm400mm250mm530mm30KW5000*2180*350029000Kg
400t/60004000Kn6000mm5000mm400mm250mm530mm30KW6000*2180*380035000Kg
500t/40005000Kn4000mm2900mm400mm320mm590mm37KW4000*2580*350035000Kg
500t/50005000Kn6000mm4000mm400mm320mm590mm37KW5050*3500*370044000Kg
500t/60005000Kn6000mm5000mm400mm320mm590mm37KW6050*3500*370055000Kg
600t/40006000Kn6000mm2900mm400mm320mm590mm45KW4050*4500*370045000Kg
600t/60006000Kn6000mm5000mm400mm320mm590mm45KW6050*4500*370060000Kg
  • Validity period: 2021.07.20
