series

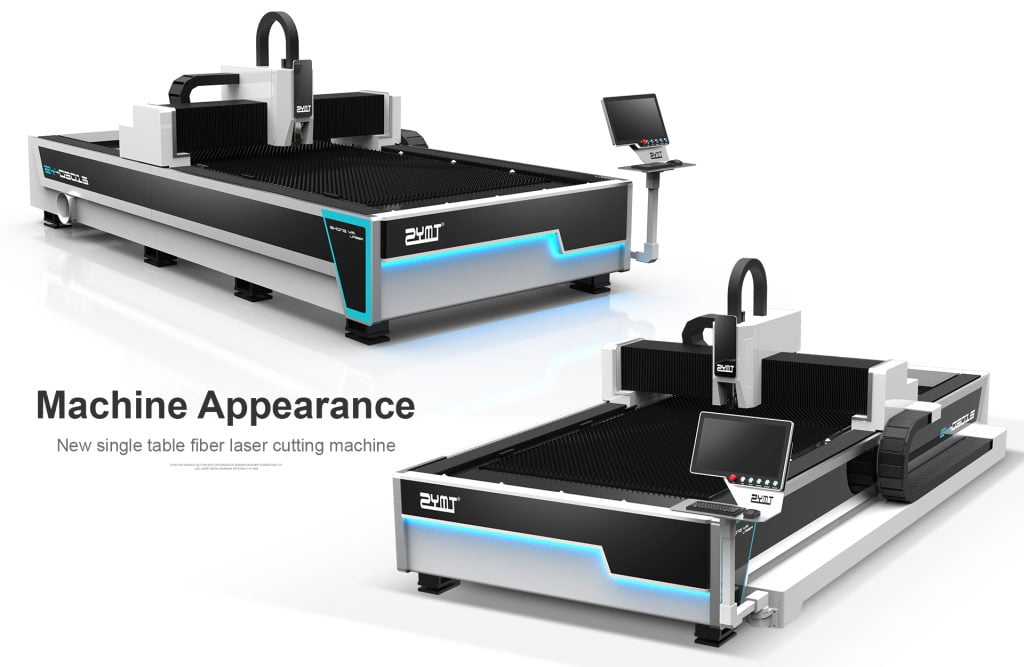

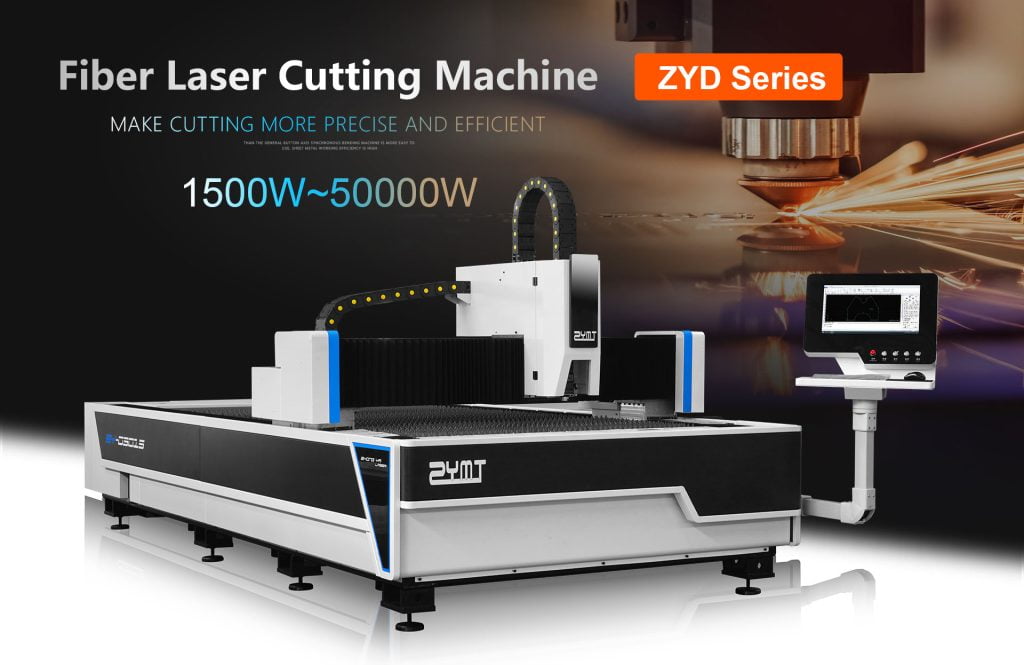

Open Type CNC Fiber Laser Cutting Machine

Single worktable laser cutting machine

Suitable for cutting medium- thin plates

ZYD-3015 / 4020 / 6025

● Low cost in use: power consumption is only 20%-30% of CO2 laser
● High speed: 2-3 times faster than YAG or CO2 laser
● High accuracy: fine laser beam, slim kerf
● Low maintenance: almost zero maintenance cost

Laser Power: 1500 – 8000W

Laser cutting video

Single-platform laser cutting is suitable for 1500W-6000W laser power, and the cutting thickness is related to the laser power.

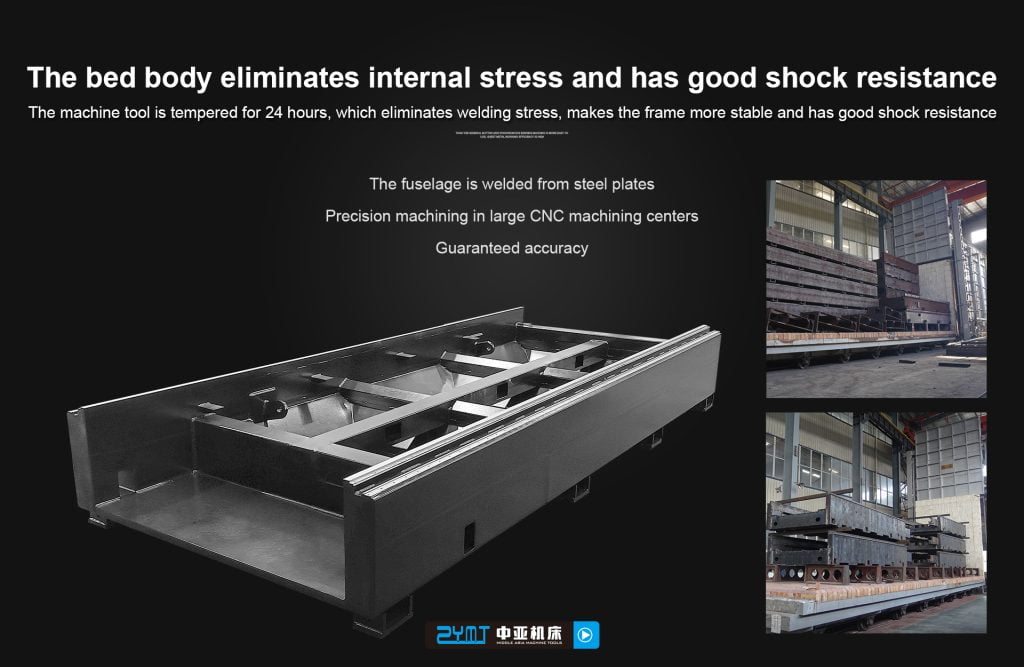

Tempering processing machine frame

The internal structure of the bed is welded by multiple rectangular pipes, and a reinforced rectangular tube is arranged inside the bed to increase the strength and tensile resistance of the bed, increase the tensile resistance and stability of the guide rail surface, and effectively avoid the deformation of the bed. After the bed is tempered, the internal stress can be completely released, and the internal stress can be almost ignored, so that the accuracy of the machine tool can be maintained for a long time.

2nd generation cast aluminum beam

Cast aluminum

Light weight, good dynamic performance of beam

Honeycomb structure

Resistance to deformation, uniform texture

High strength

High-pressure casting process, no porosity, no blisters

Large touch screen

The Bochu Laser intelligent operating system integrates a variety of advanced functions to easily achieve high-efficiency production.

Reliable laser generator

IPG

IPG Photonics Corporation. Imported from Germany

MAX

maxphotonics, Innovation and technology are the cornerstones of our development

Application industry

Kitchenware lamps, hardware cabinets, sheet metal processing, auto parts, refrigerators, air conditioners, elevators, hotel metal supplies

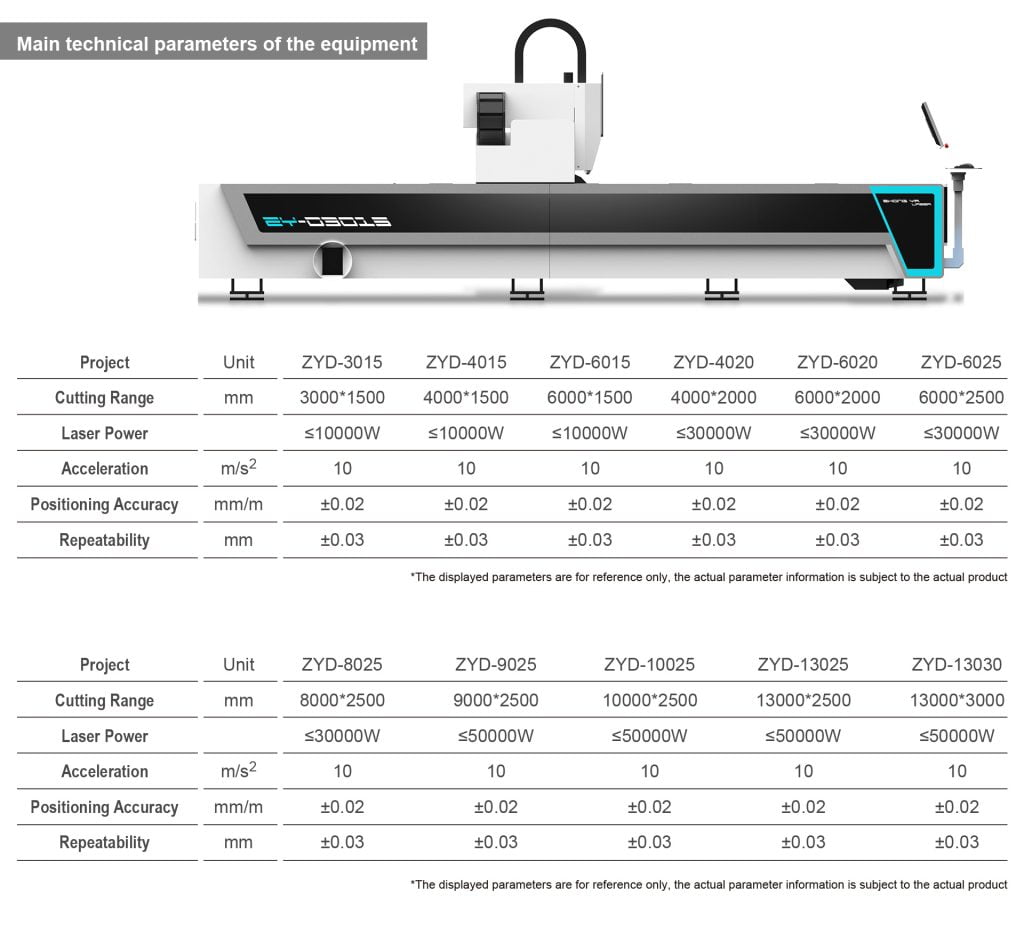

Specs

ModelZYD-3015ZYD-4015ZYD-4020ZYD-6020ZYD-6025ZYD-8025
Cutting range3000~1500mm4000~1500mm4000~2000mm6000~2000mm6000~2500mm8000~2500mm
Laser Power3~12Kw3~12Kw3~12Kw3~12Kw3~12Kw3~12Kw
Max.Acceleration10m/s210m/s210m/s210m/s210m/s210m/s2
Peatability0.02mm0.02mm0.02mm0.02mm0.02mm0.02mm
Repeatability0.03mm0.03mm0.03mm0.03mm0.03mm0.03mm
